  • ZXEV05-20A Medium Pressure 450VDC Automotive DC Contactor Relays
ZXEV05-20A Medium Pressure 450VDC Automotive DC Contactor Relays

ZXEV05-20A Medium Pressure 450VDC Automotive DC Contactor Relays

  • Main Features 20A continuous current capacity Direct current relay Fully standardized quick connect size and layout Plastic cover for rough environment protection Typical automotive Applications Electric vehicle pre-charging
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    012 12 90 1.6 9 18.0 1
    024 24 360 18 35 2
    Contact Data
    Material AgSnO₂
    Initial Contact Resistance 10mΩ at 20A
    Contact Form 1 Form A
    Max.Continuous Current 20A (PCB 25A)
    Min.Load 1A/12VDC
    Sevice Life Mechanical 1×10 6 ops.
    Electrical 1.5×105ops. 10A 450VDC 7.5×104ops. 20A 450VDC 2×105ops. 20A 72VDC
    Characteristics
    Dielectric strength Coil to contact 3000VAC 1min
    Across open contact 2500VAC 1min
    Operate/Release Time 30ms. typical/10ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance 10-40Hz:DA1.27mm,40-70Hz:5g 70-100Hz: DA0.5mm, 100-500Hz:5g
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 125℃
    Weight Approx 60g

  •



  • 1. The above parameters are subject to room temperature of 23 degrees unless otherwise specified.
    2. The maximum on-current refers to the surge current on the lamp.
    3. When the ambient temperature is 85 degrees, the maximum allowable voltage should be reduced to 72% of the original value.

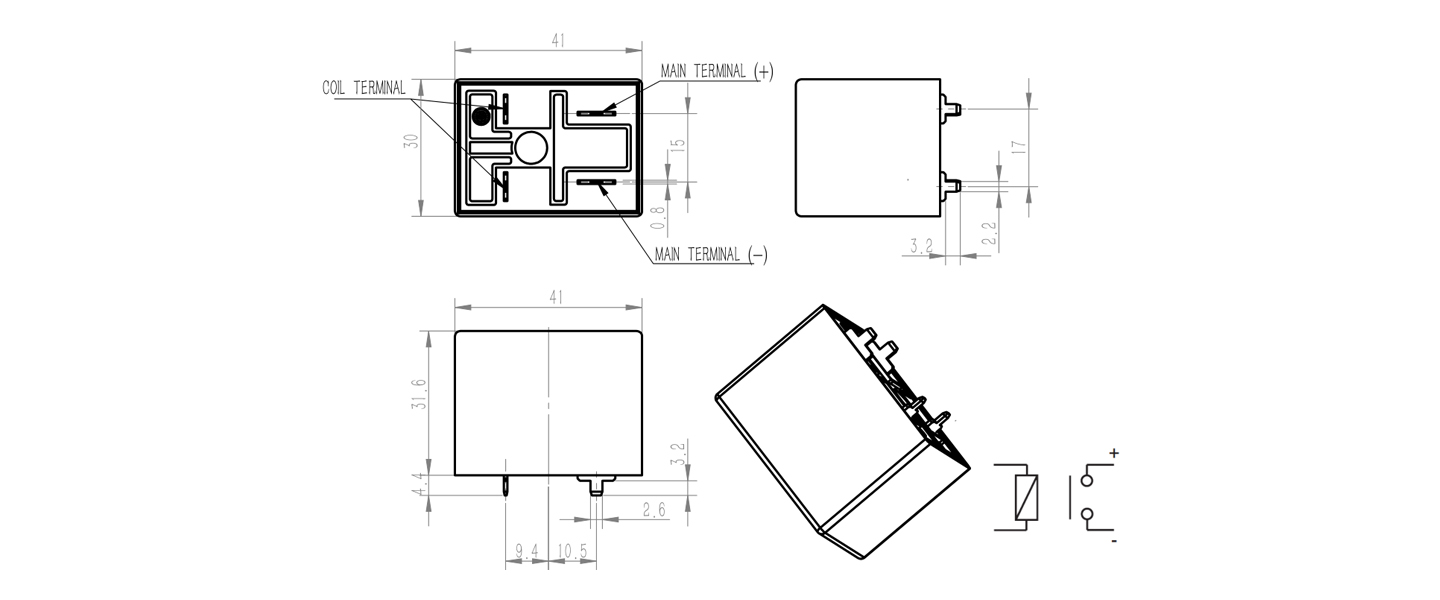

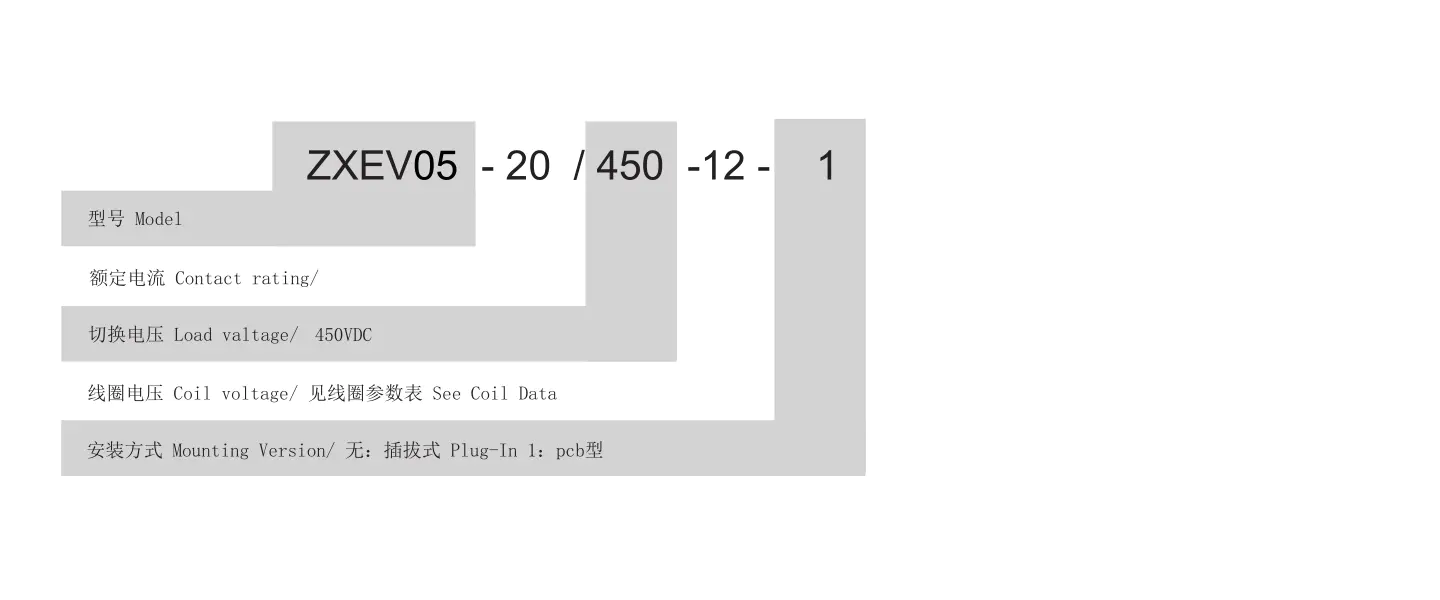

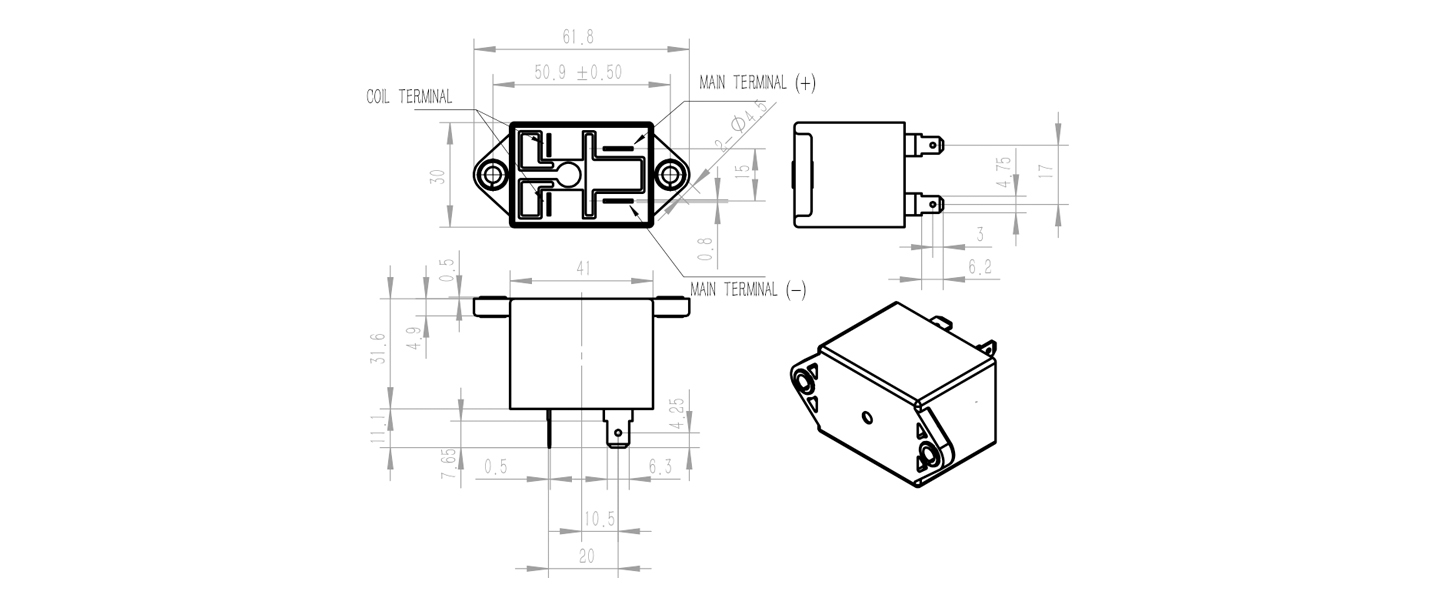

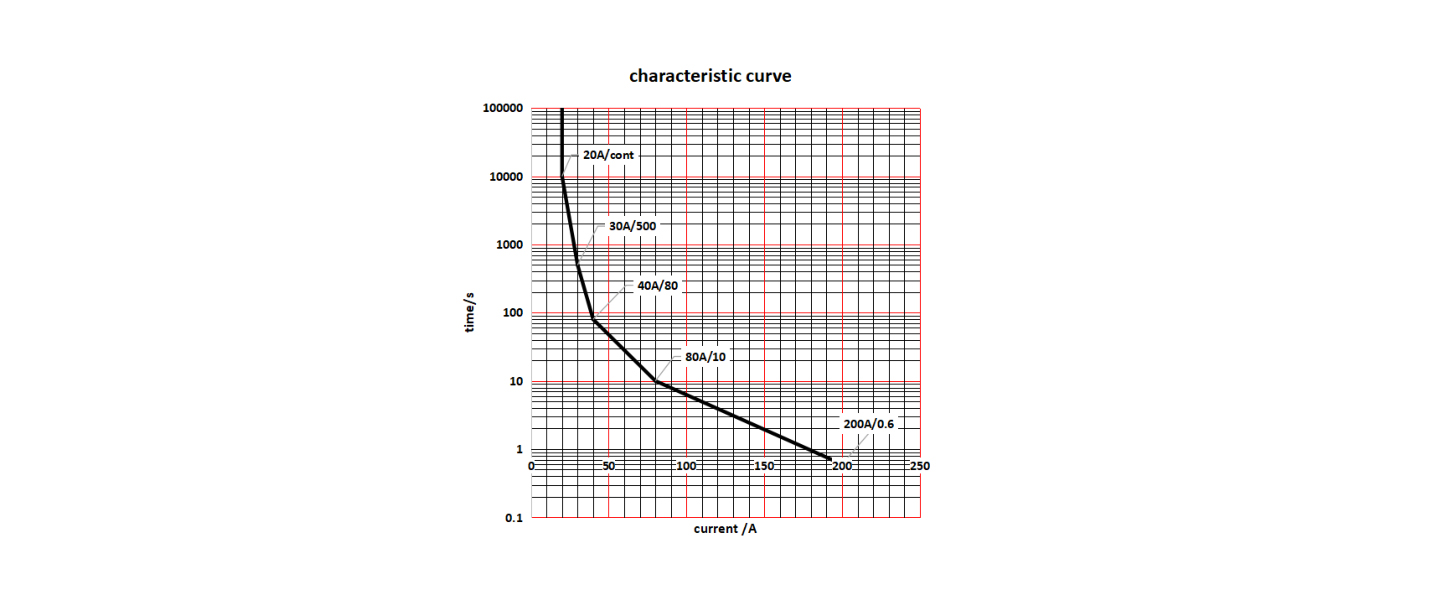

    4. The current time curve data is measured at the ambient temperature of 85 ° C, and the cross section of the wire is ≥4mm²
