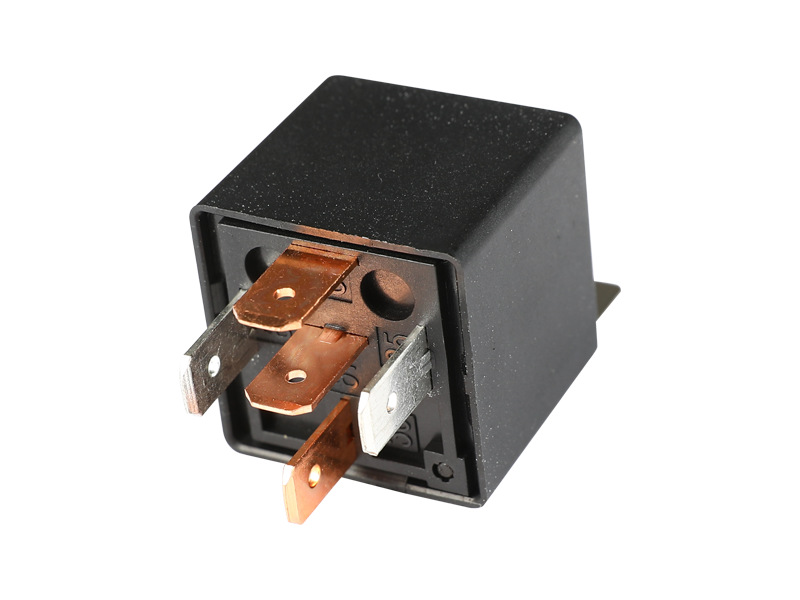

60A Continuous Current Capacity ZX555 Automotive Relays

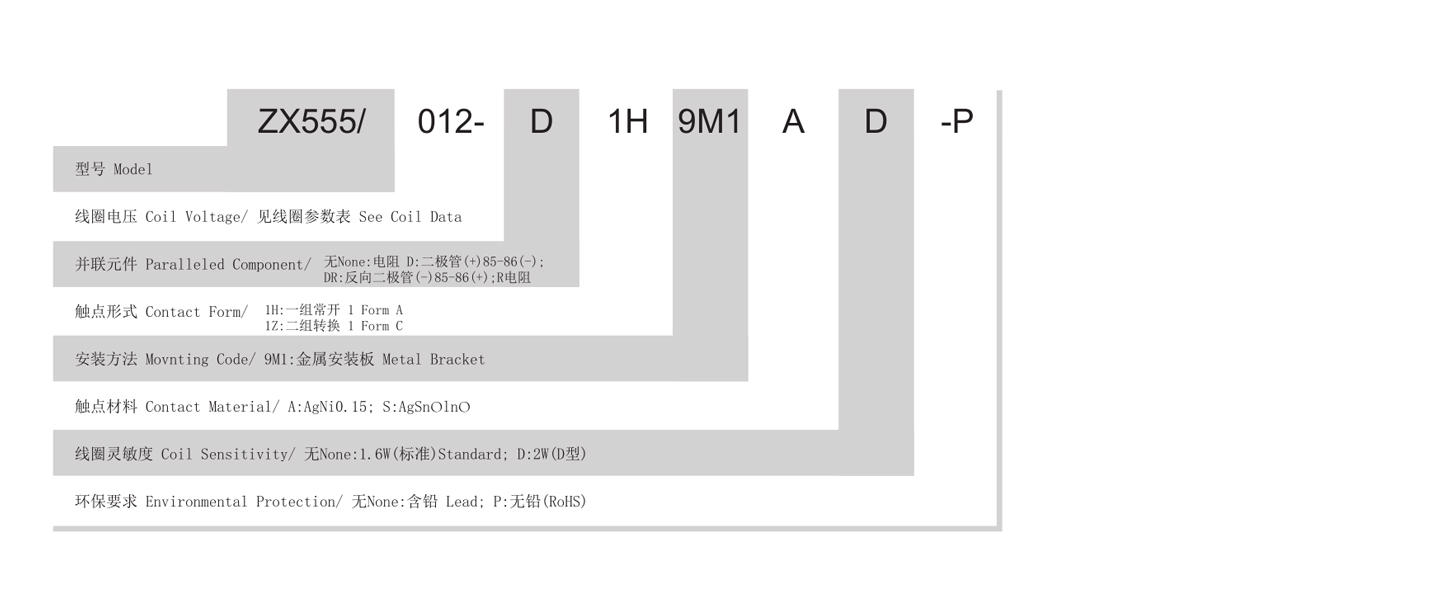

Ordering Code

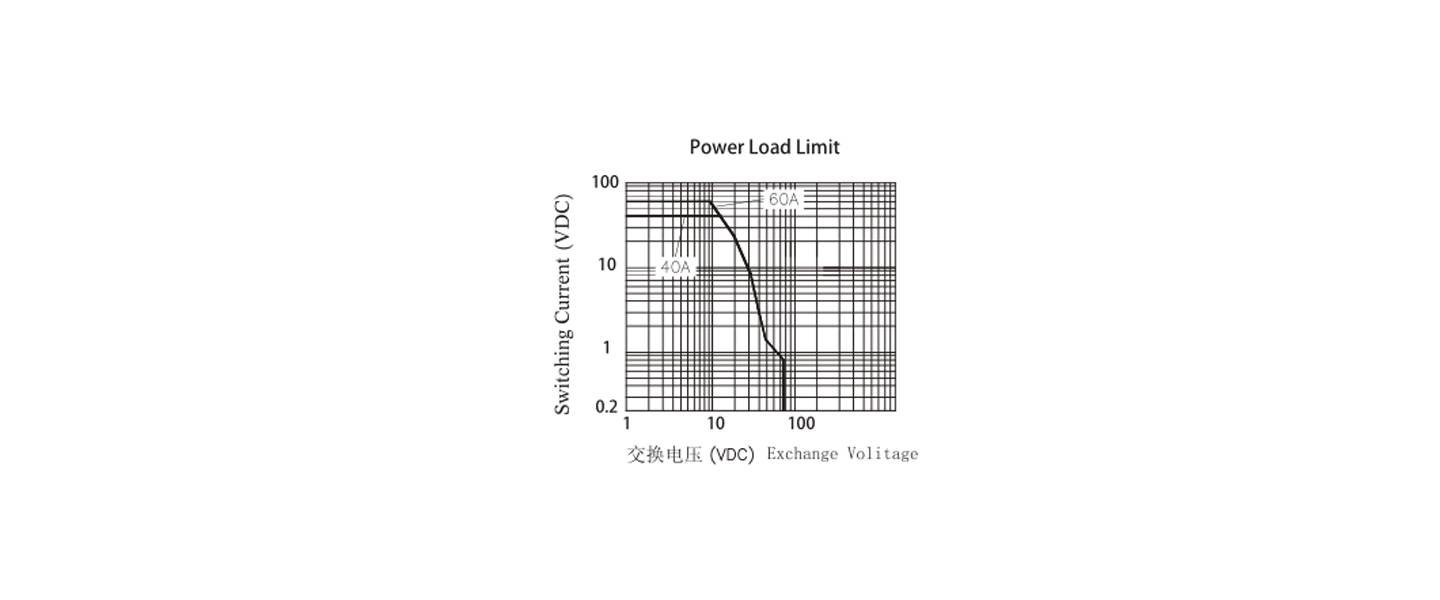

Referencd Curve

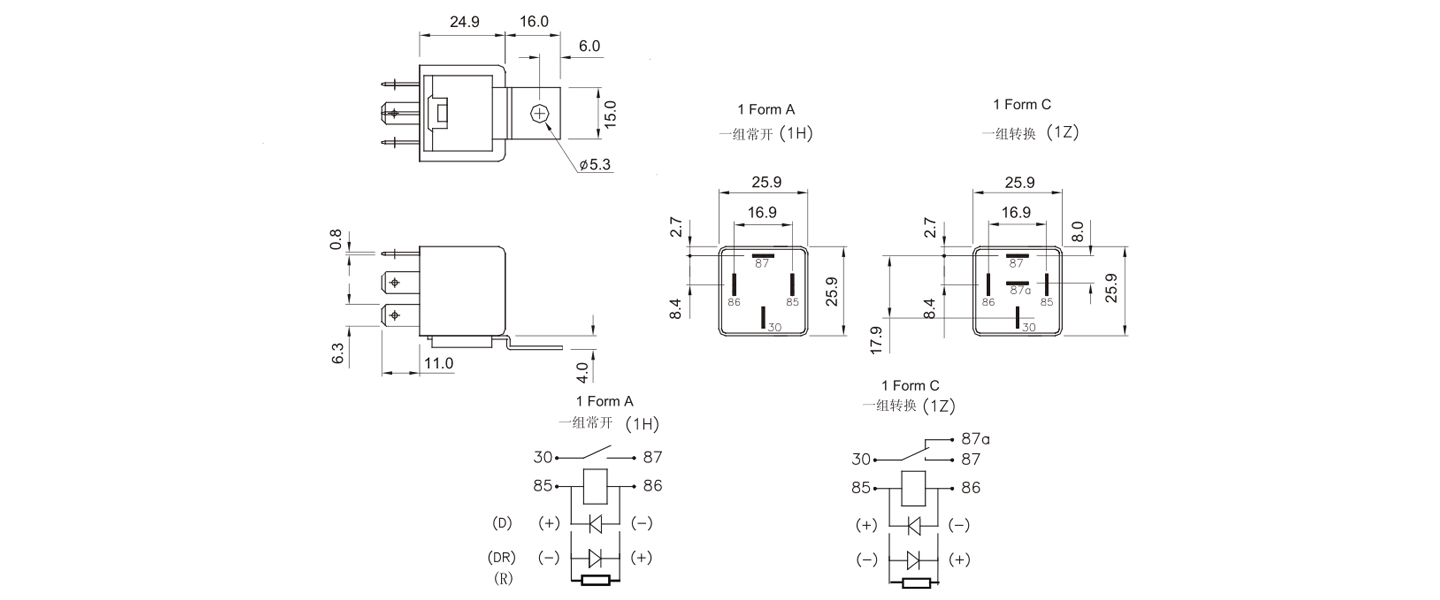

Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

Notes：

1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

2.Maximun make current refers to inrush current of lamp load.

3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

4.For 24V system applications consult factory for rating information.
