  • ZX183 General Purpose High Sensitive Automotive Relay
ZX183 General Purpose High Sensitive Automotive Relay

ZX183 General Purpose High Sensitive Automotive Relay

  • Main Features Subminiature,low PCB occupation area Heavy duty,with choice of contact materials Standard and high sensitive type options Typical automotive Applications Office machine Vending machine Home appliances Audio system
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance（Ω）±10% Must Operate Voltage max. Must Release Voltage min.
    Standard(0.45W) Sensitive(0.2W)
    003 3 20 45 2.25
    005 5 55 125 3.75
    006 6 80 180 4.50
    009 9 180 400 6.75
    012 12 320 720 9.00
    024 24 1280* 2800* 18.00
    048 48 1280* 2800* 36.00
    Contact Data
    Material AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A / 1 Form C
    Rated Load Resistive 10A,120VAC/28VDC(C)
    Telelision 5A,125VAC(S)
    Sevice Life Mechanical
    Electrical 1×10 5 ops.
    UL/CSA Ratings
    Contact Form 1 Form A / 1 Form C Contact Material Code
    Resistive 5A,240VAC(TUV) 10A,120VAC(UL/CSA)10A,28VDC(UL/CSA) C(AgCdO)
    Motor 5A,125VAC(UL/CSA) S(AgSnOlnO)
    Characteristics
    Operate/Release Time 10ms. max/4ms. max
    Insulation Resistance 1000MΩ, at 500VDC, 50%RH
    Dielectric Strength Between coil and contacts for 1 Form A(H):3,200Vrms, 1mim Between coil and contacts for 1 Form C(Z):2,800Vrms, 1mim
    Shock Resistance Functional:10g,11ms; Destructive:100g
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating：-30℃ to 60℃
    Weight Approx 6g

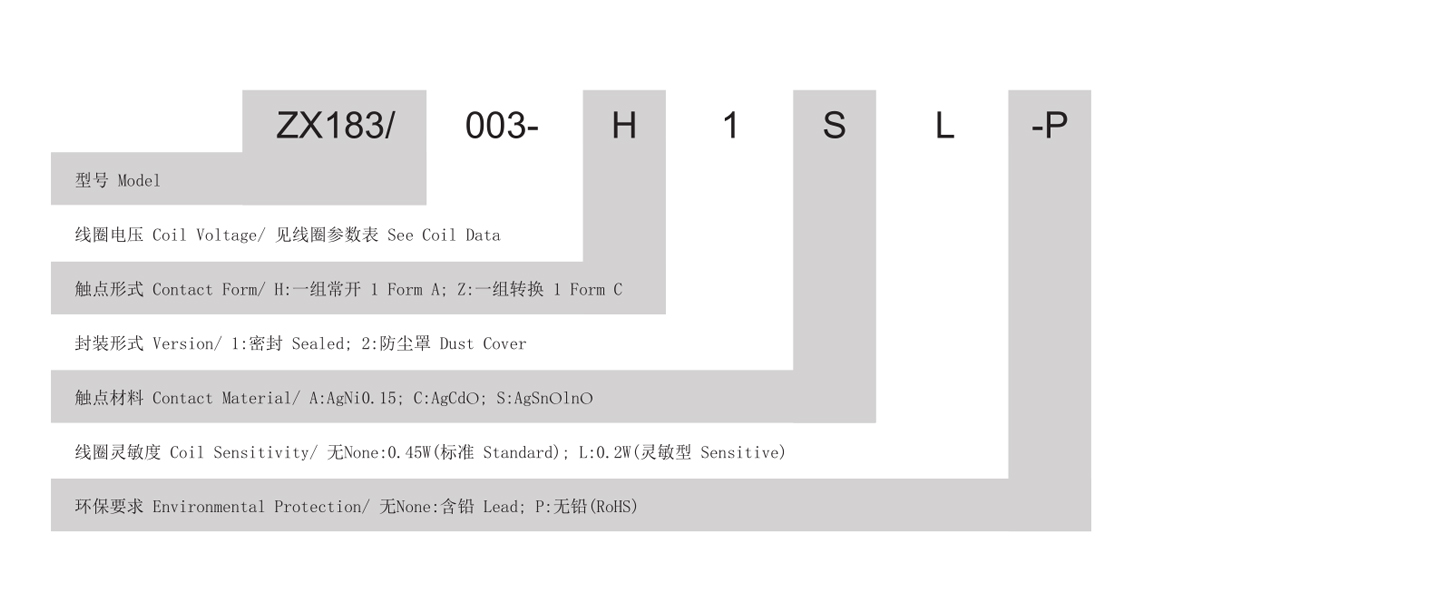

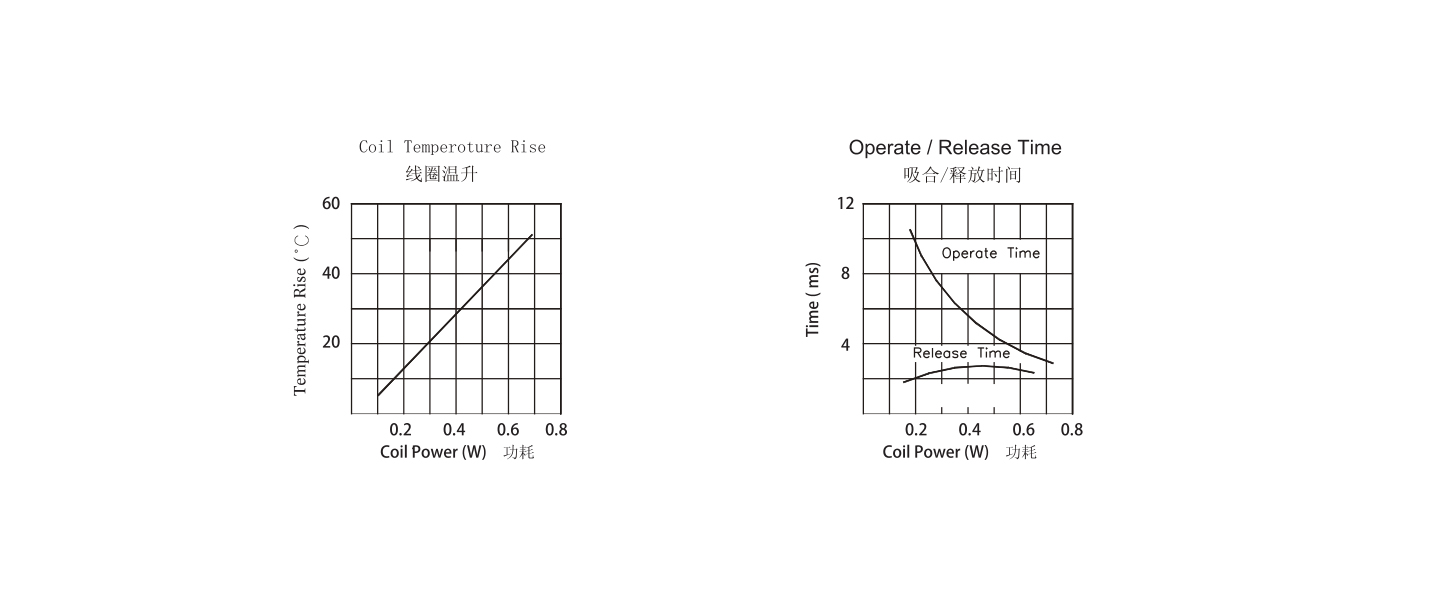

  • Reference Curve

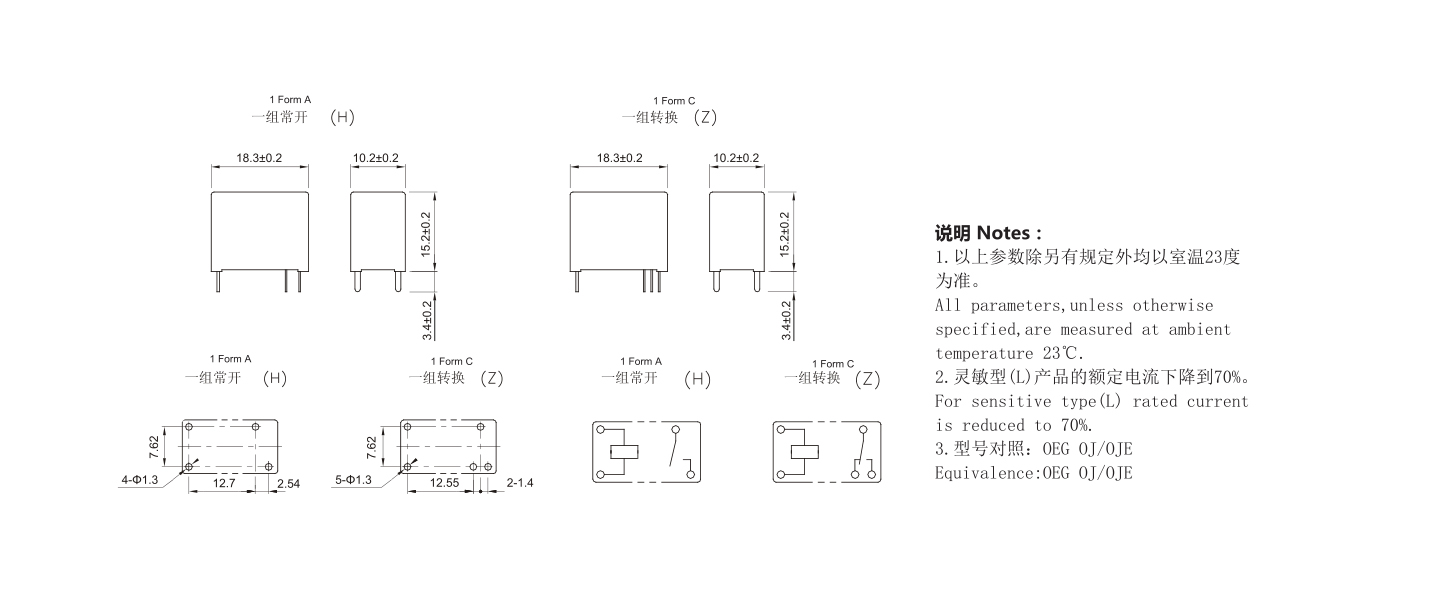

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams
