  • 40A Continuous Current Capacity Power Protection ZX182 Automotive Relays
40A Continuous Current Capacity Power Protection ZX182 Automotive Relays

40A Continuous Current Capacity Power Protection ZX182 Automotive Relays

  • Main Features Micro size plug-in design 40A continuous current capacity Dust cover and sealed version available for rough environment protection Available in PCB termination Typical automotive Applications Blower motor control Stationary heating Ventilation motor Head lights,full beam/dimmed Compressor control system Fog lamp Radiator cooling fan
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage max Must Release Voltage min. With Resistor
    A,B C A,B C
    006 6 32 25 1.2（A,B） 1.5(C) 3.6 7.2 14.4 10.4 9.2
    012 12 123 97 20.4 18.1 1.2 680
    024 24 483 384 40.4 36.0 2.4 2720
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 50mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A
    NO NC
    Max.Switching Current Make
    Break 40A
    Max.Continuous Current 40A
    Max.Switching Voltage Current dependent(See curve)
    Min.Load
    Sevice Life Mechanical
    Electrical
    Characteristics
    Operate/Release Time 9ms. typical/7ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance 10-40Hz:DA1.27mm, 40-70Hz:5g 70-100Hz:DA0.5mm, 100-500Hz:10g
    Ambient Temperature Operating：-40℃ to 125℃ Storage：-40℃ to 155℃
    Weight Plng-in：Approx 21g PCB：Approx 19g
    Drop Resistance Drop Resistance 1M height drop on concrete

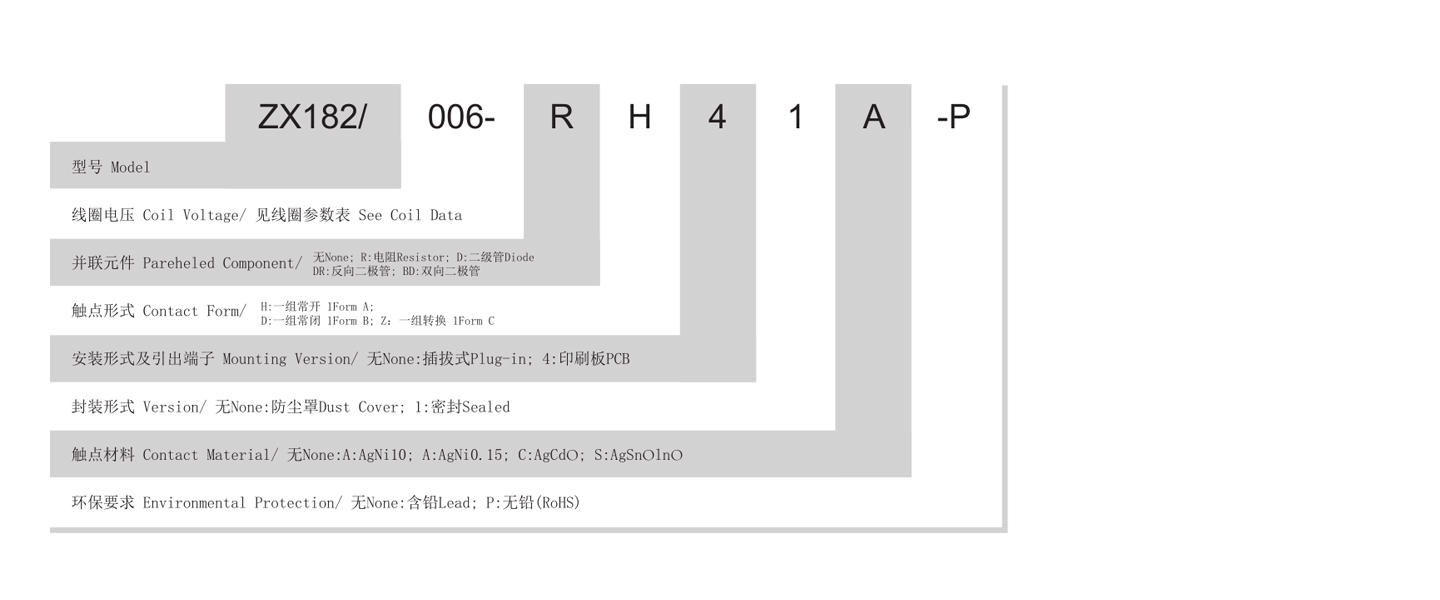

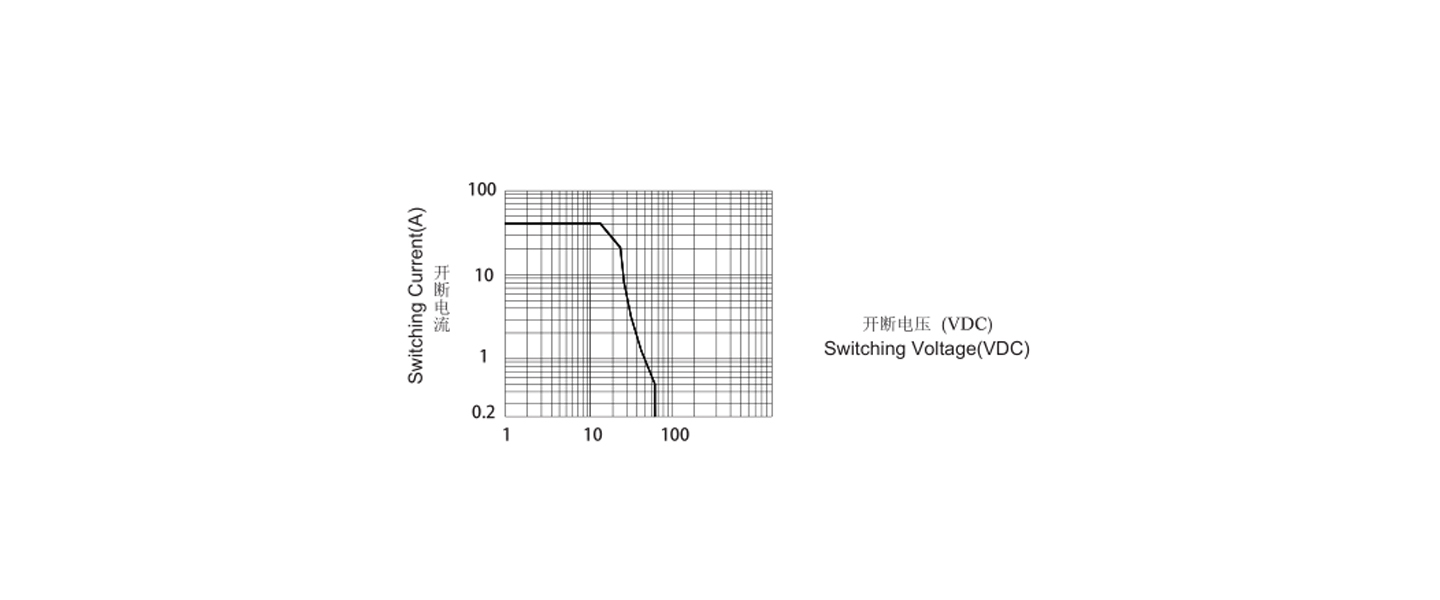

    Referencd Curve

  • Referencd Curve

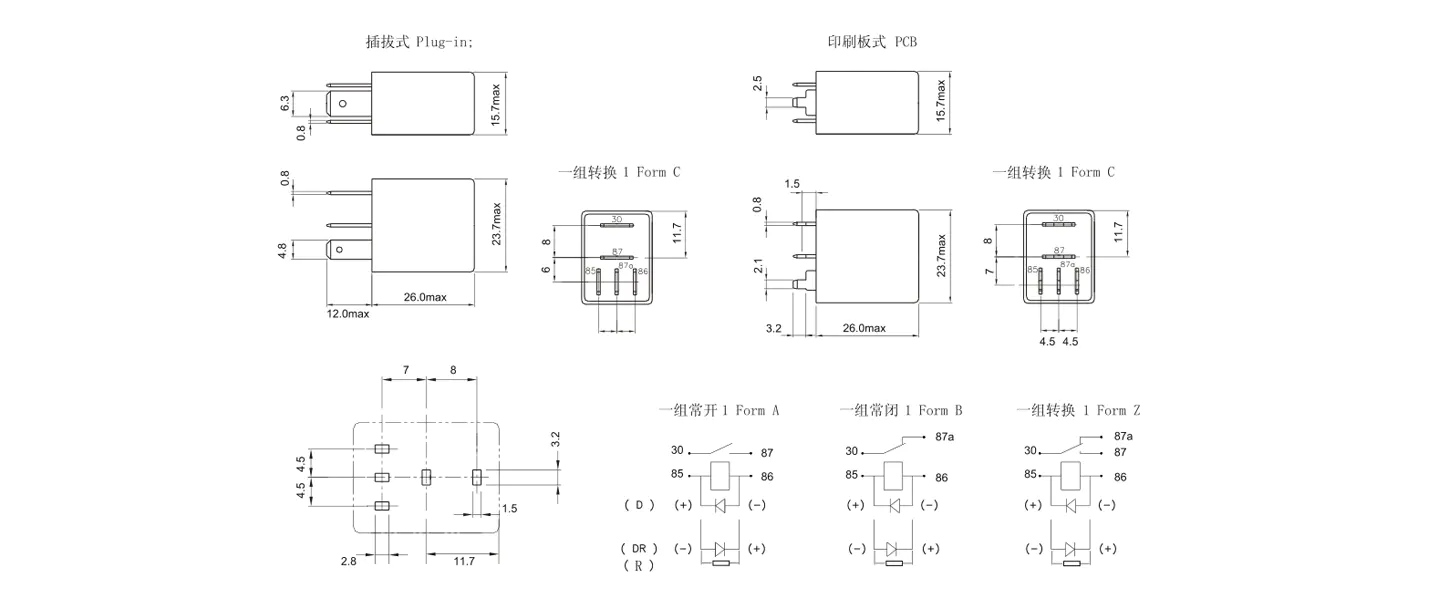

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4.Electrical life obtained at resistive or inductive load at 40A,15VDC with suitable arc-suppression circuit attached with operating frequency of 1 ops/sec.

    5.Equivalence:Tyco Micro A, P&B VFM
