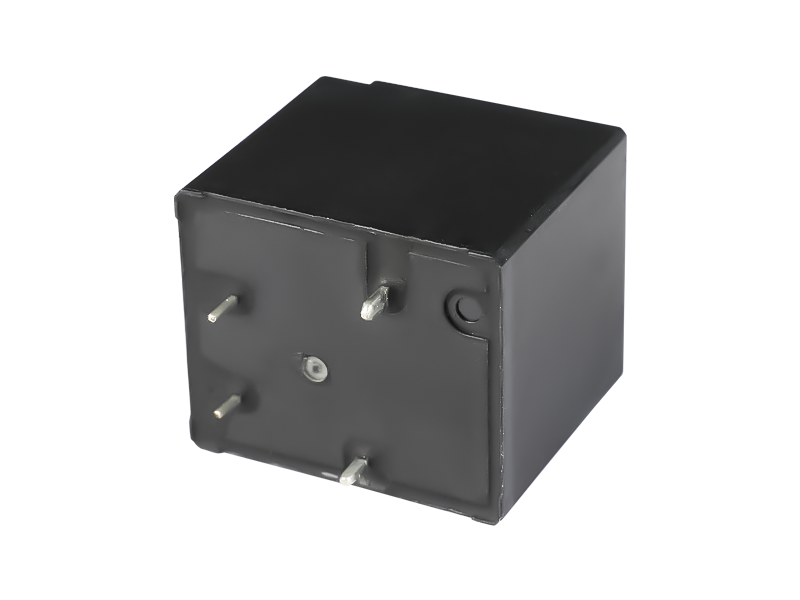

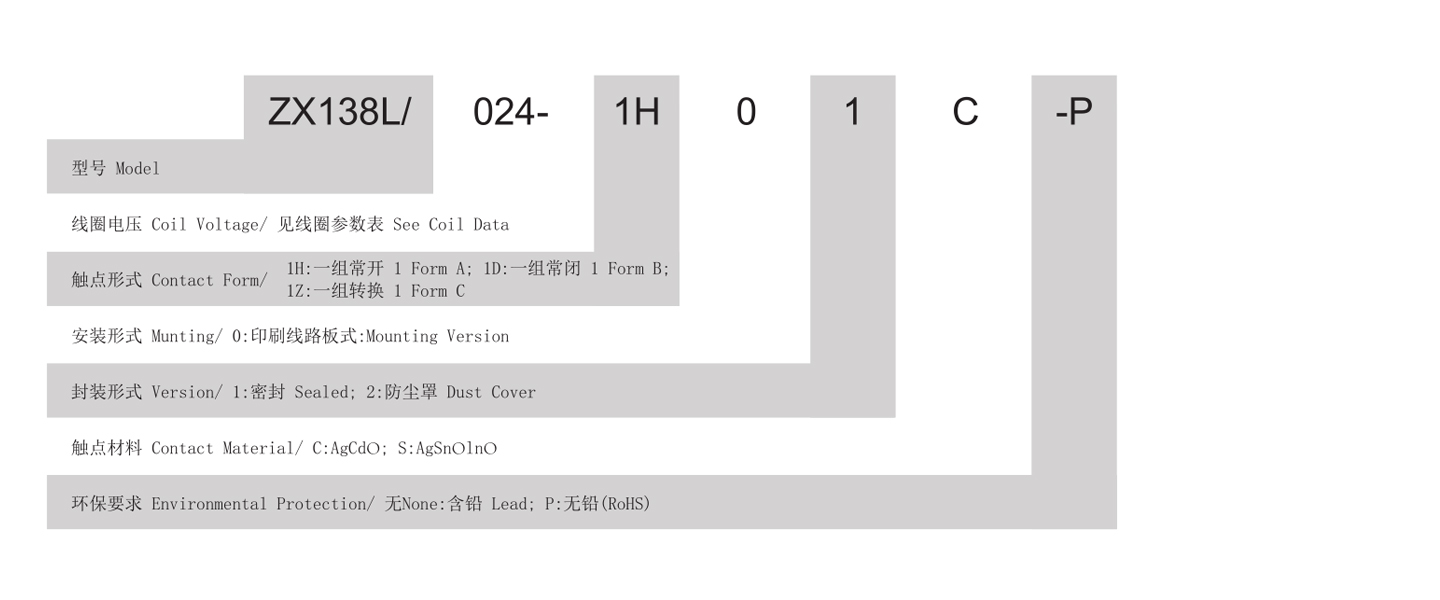

45A Switching Capacity ZX138L General Purpose Automotive Relays

45A Switching Capacity ZX138L General Purpose Automotive Relays

  • Main Features Improved ZX138 relay by magnetic arc blowout Up to 45A Switching capacity PCB+Quick Connect termination Typical automotive Applications Power supply device Industrial controls Medical equipment
Contact us
  • Coil Data
    Model Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    DC 005 5 27 0.9 3.75 0.5
    006 6 40 4.50 0.6
    009 9 97 6.75 0.9
    012 12 155 9.00 1.2
    024 24 660 18.00 2.4
    048 48 2560* 36.00 4.8
    110 110 10330* 82.5 11.0
    Contact Data
    Material AgCdO; AgSnOlnO
    Initial Contact Resistance 50mΩ, max. at 0.1A, 6VDC
    Contact Form Voltage
    NO NC
    Rated Load Resistive 240VDC
    28VDC
    Sevice Life Mechanical
    Electrical 1.5×10 4 ops.
    UL/CSA Ratings
    Load Type Genetal Putpose 1 Form C 1 Form B 1 Form C
    NO NC
    Universal 240VAC 45A 20A 30A
    Resistive 240VAC 28VDC 45A 30A 20A 15A 30A 30A
    Motor 240VAC 120VAC 3HP 1.5HP 0.75HP 0.375HP 2HP 1.5HP
    LRA/FLA 240VAC 120VAC 120A/45A 147A/33A 45A/15A 75A/30A
    Tugsten 120VAC TV8 TV4 TV8
    Bavsast 277VAC 15A 4.5A 15A
    Pilot Duty 125-250VAC 700VA
    Characteristics
    Operate/Release Time 15ms. max/10ms. max
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance Functional:10g, 11ms. Destructive:100g
    Vibration Resistance DA 1.5mm, 10-55Hz
    Ambient Temperature Operating：-55℃ to 85℃ Storage：-40℃ to 130℃
    Weight Approx 32g

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

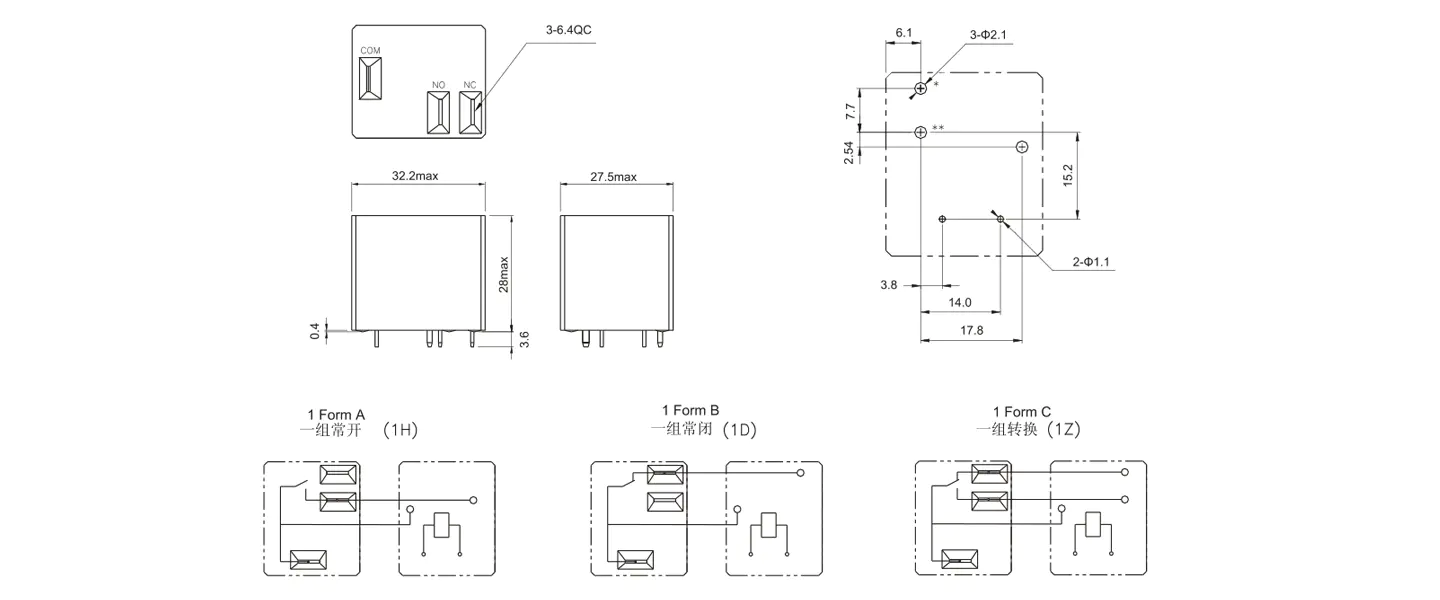

    2.In mounting Holes drawing, the *hole is not needed for 1 Form A(1H),the **hole is not needed for 1 Form B(1D).

    3.To exert optimum electrical life,Please remove the tape of sealed version after cleaning process.

    4.Equivalence:P&G T91E
