  • 15A Continuous Current Capacity ZX117 Automotive Relays
15A Continuous Current Capacity ZX117 Automotive Relays

15A Continuous Current Capacity ZX117 Automotive Relays

  • Main Features 15A continuous current capacity 6 different contact forms Available with open,dust cover and sealed version Automotive-oriented design Typical automotive Applications Flasher Automatic mirror adjustment Belt tension adjustment Interval wiper control Air conditioning Power window Fuel pump control Central door lock Anti-theft alarm system ABS system
Contact us

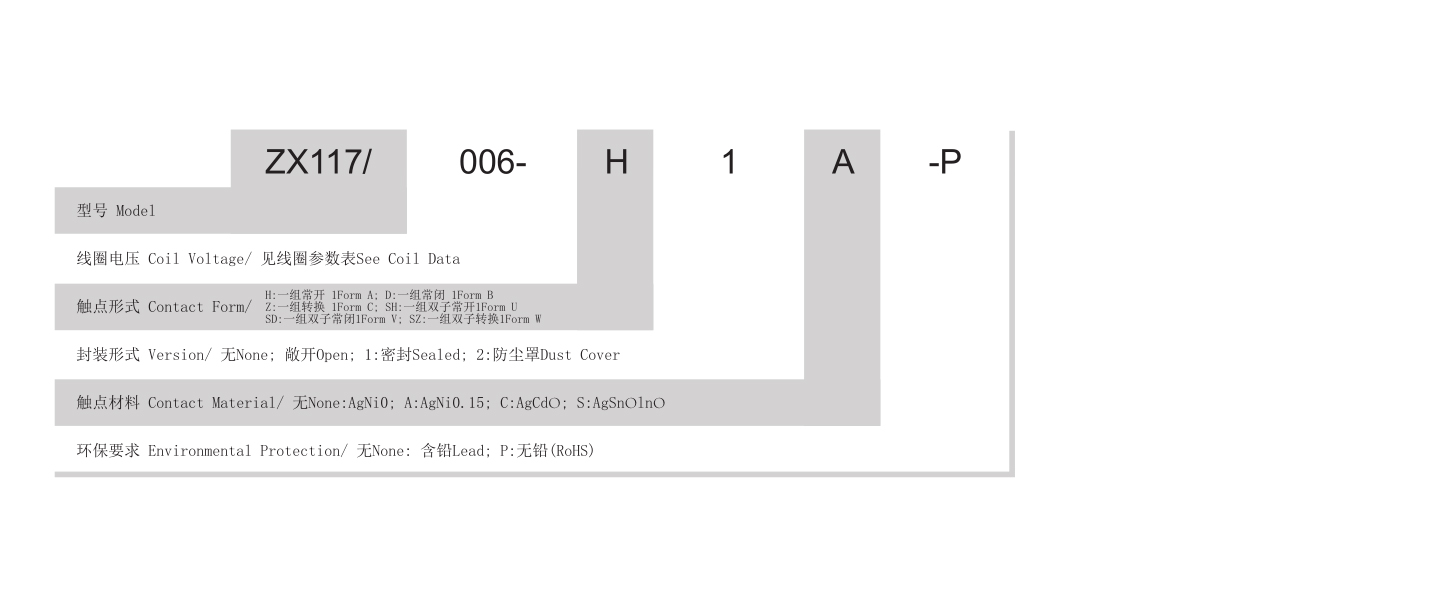

  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    1 Form A/B/C/U/V 1 Form W 1 Form B/V 1 Form A/C/U/W
    006 6 28 28 4.5 8
    012 12 12 130 9.0 16
    012 12 12 520 18.0 31
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A
    NO NC
    Max.Switching Current Make
    Break 20A
    Max.Continuous Current 15A
    Max.Switching Voltage Current dependent (See curve)
    Min.Load 0.1A/5VDC (AgNi0.15); 0.5A/5VDC (AgSnOlnO)
    Sevice Life Mechanical
    Electrical 2×10 5 ops. See Note 4
    Characteristics
    Operate/Release Time 3ms. typical/1.5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 11ms
    Vibration Resistance Functional: NO: 20g, NC: 10g, 10-200Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 125℃
    Weight Open: Approx 8g; Covered: Approx 12g
    Drop Resistance Drop Resistance 1M height drop on concrete
    Power Consumpution 1.1W
    Referencd Curve

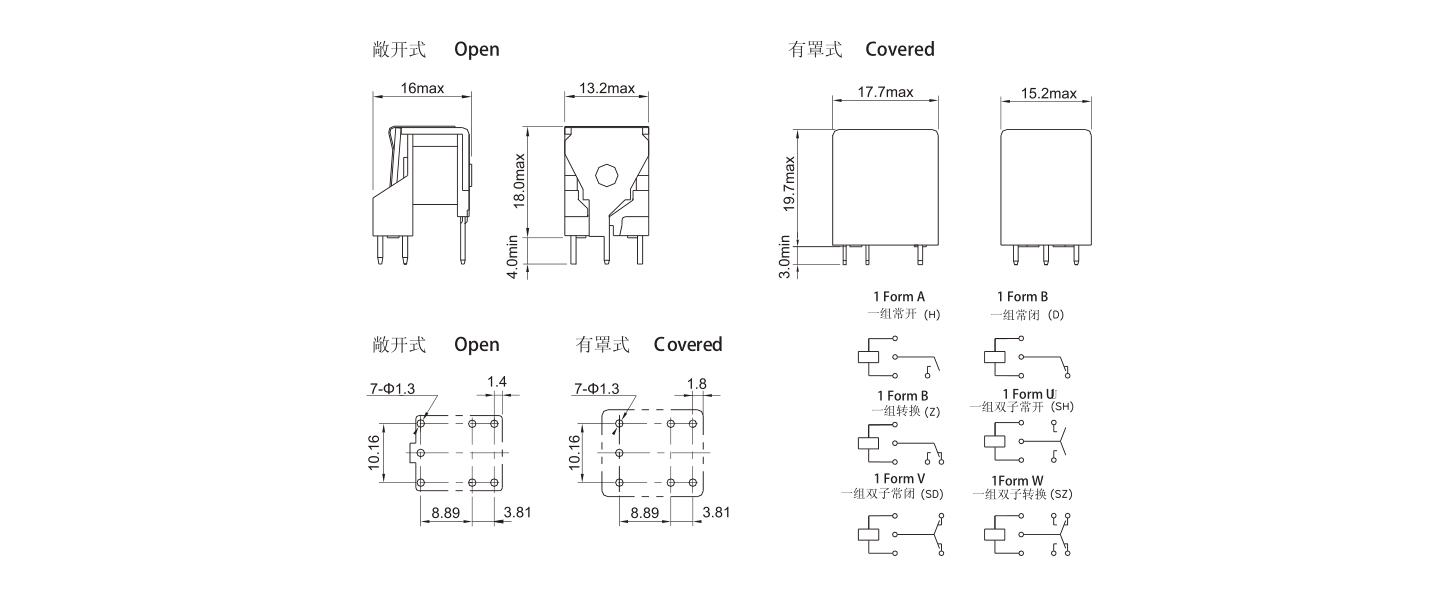

  • Notes：

    1. All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2. Maximun make current refers to inrush current of lamp load.

    3. At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4. Electriacl life obtained at resistive or inductive load at 10A,15VDC for 1 form A/B/C/u/V,7A,15VDC for 1 form W,with suitable

    are-suppression circuit attached with operating frequency of 1 ops/sec.

    5. To exert optimun electrical life,please remove the knock-off nib of sealed version after cleaning process.

    6. Equivalence:Tyco mini Power K, P&B VKM
