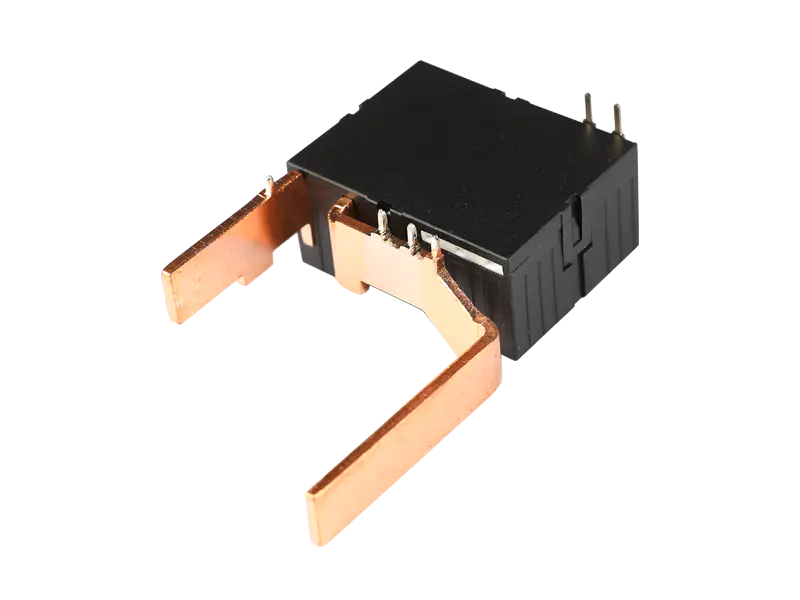

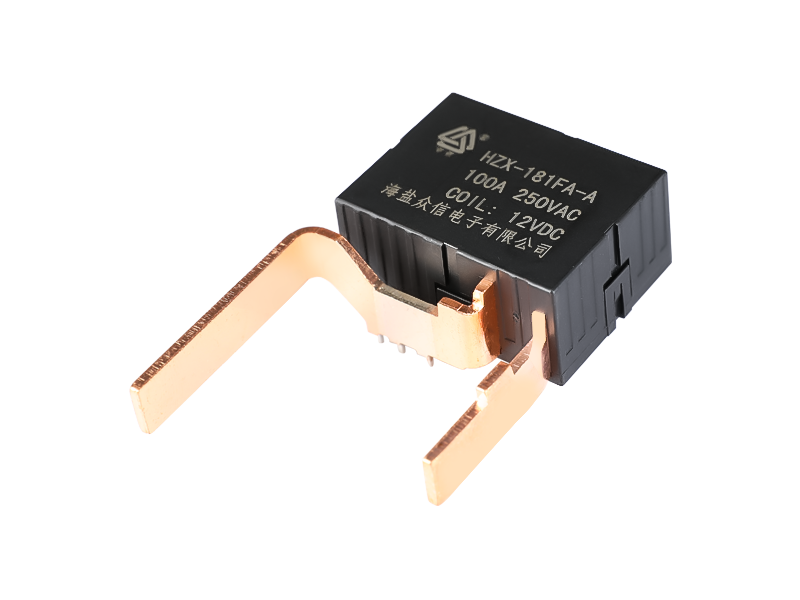

Stable Performance 100A 250VAC Magnetic Latching Relay

Stable Performance 100A 250VAC Magnetic Latching Relay

  • 100A switching capability
  • Very minimal power consumption from the coil
  • 4KV dielectrics strength coil to contact In
  • accordance with IEC62055-31:UC3
  • Outline dimensions:(39*30*18.5)mm
  • CE,CQC compliant
  • RoHS,TUV compliant
Contact us
  • Contact Data
    Rated load(FLA) 100A/250VAC
    Contact form 1A & 1B
    Contact material AgSnO₂
    Initial contact resistance ≤2mΩ（0.1A@6vdc)
    Max.switching current 100A
    Max.switching voltage 250VAC
    Max.switching power 22,500VA
    Electical endurance 1x104ops
    Mechanical endurance 1x106ops
    Coil Powera
    Coil type Pulse duration Power consumption
    Single Min.50ms 2W
    Dual Min.50ms 4W
    Characteristics
    Insulation resistance 1,000MΩ（at 500VDC)
    Dielectric strength
    Coil to contact 4,000VAC 1 min
    Across open contact 1,800VAC 1 min
    Operate time Max.20ms
    Release time Max.20ms
    Shoock resistance functional 100m/s²(10g)
    Shoock resistance destructive 1000m/s²(100g)
    Ambient temperature -40 ~ 70℃
    Humidity 98%RH,+40℃
    Vibration resistance 10-55HZ,1.5mm(DA)
    Termination PCB
    Unit weight 50g
    Construction Dust protected
    Coil Data
    Nominal coil voltage Min.operating voltage Max.operating voltage Coil Resistance (Ω±10%)@23℃
    Single coil resistance Dual coil resistance
    6Vdc 4.5Vdc 12Vdc 18Ω
    9Vdc 6.3Vdc 18Vdc 41Ω
    12Vdc 8.4Vdc 24Vdc 72Ω
    24Vdc 16.8Vdc 48Vdc 288Ω

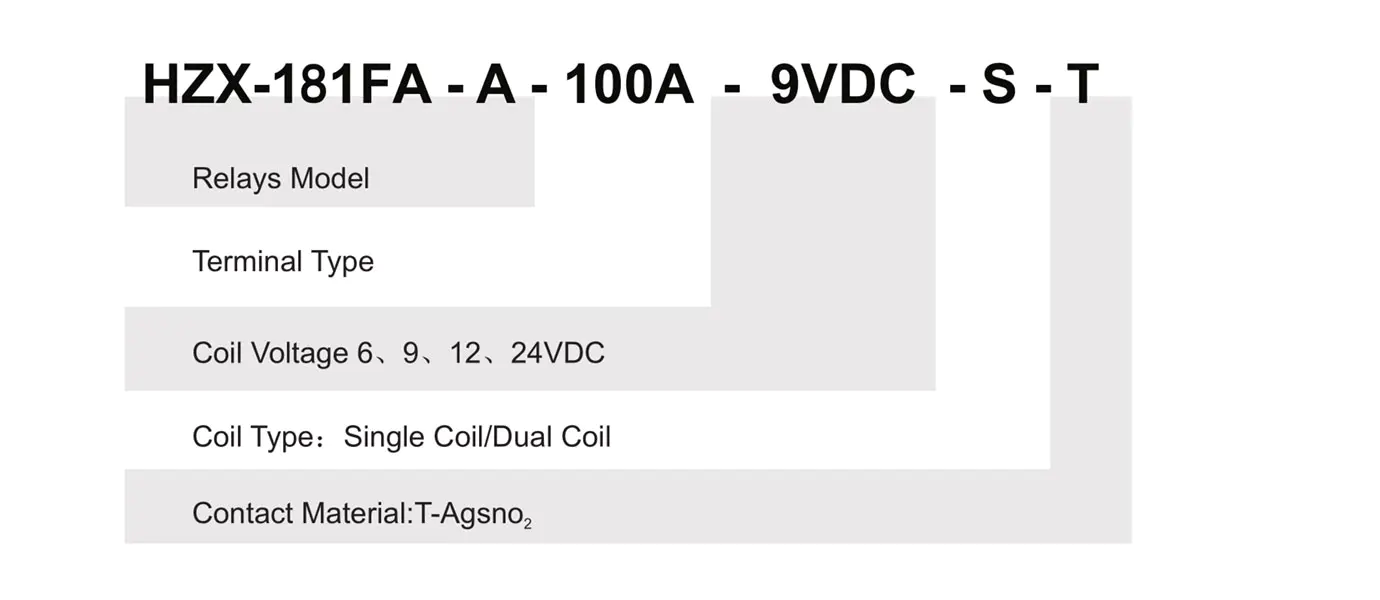

    Order Information
    Terminal Type See drawing
    Custom design
    Coil Type Single coil latching
    Dual coil latching
    Coil Voltage 6，9,12,24Vdc
    Coil Polarity Positive
    Negative

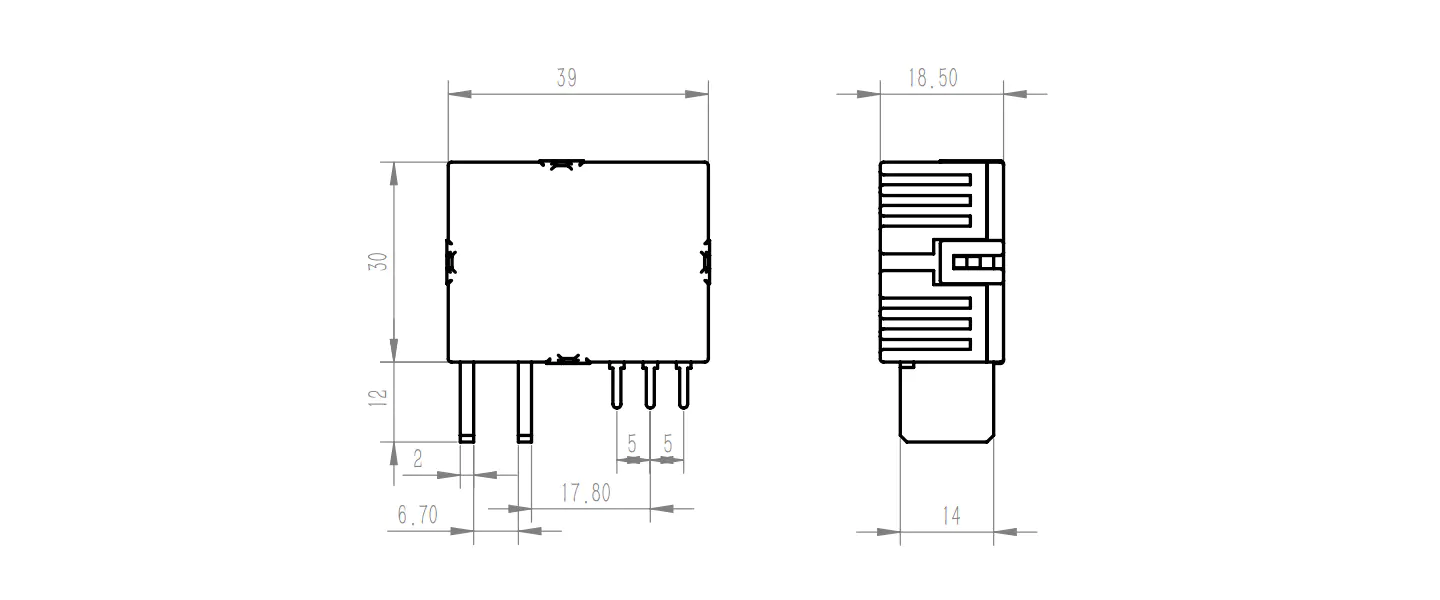

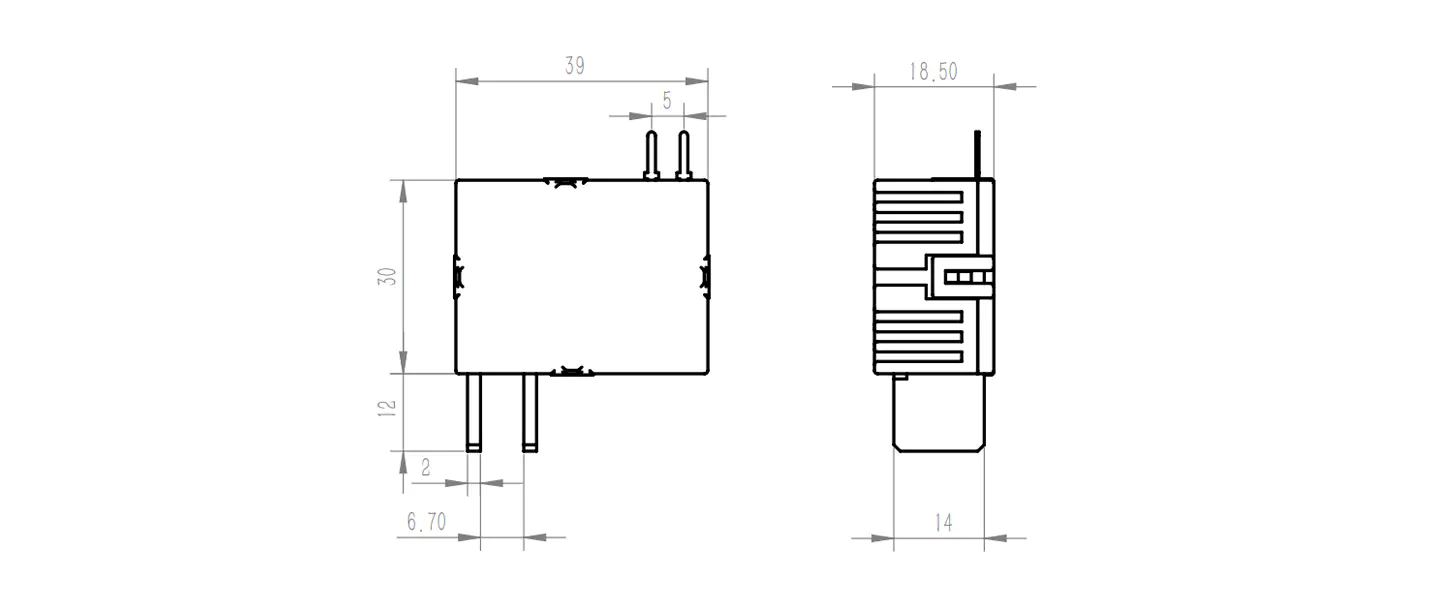

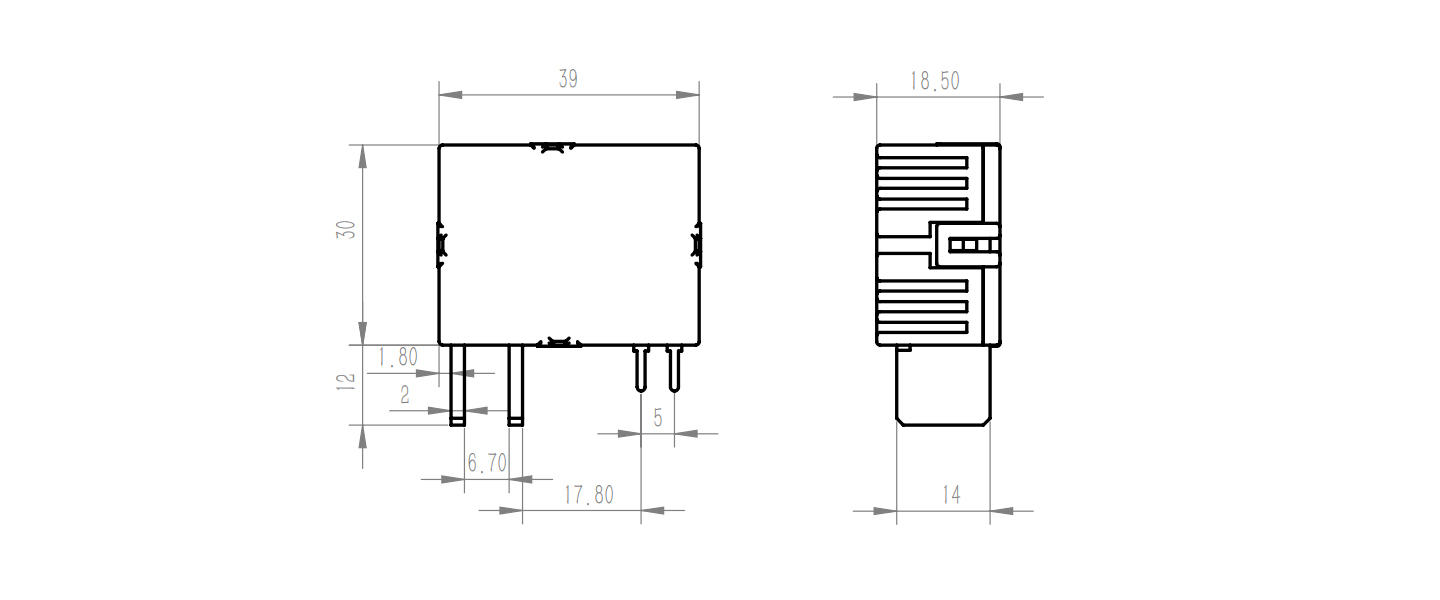

  • Exterior dimensions（mm）



    Exterior dimensions（mm）

  • 1、All relays are shipped in the “closed”position.It is possible that during transit or final assembly the relay could change its state to the “open”position.
    Therefore,it is recommended that all relays be set to the desired state of the relay via a power supply.
    2、In order to maintain an “open” or “closed” state of the relay,the coil voltage should reach the rated voltage. The pulse width should be 5 times the
    operating time to ensure a proper change of state.Do not energize both T1 and T2 at the same time on a dual coil or energize the coil for longer than 1 minute
    (damage to the coil could incur).
    3、Relays have polarity,if the user’s need different from information,shoud be contact us.
    4、The relay to the factory inspection and use should handle to prevent damage effect，to the factory for damaging the goods shoud be strict distinction between
    the normal product and must not uses.
