  • 110VDC ZXEV041-10A Pre-rush relay Medium Pressure DC Contactor

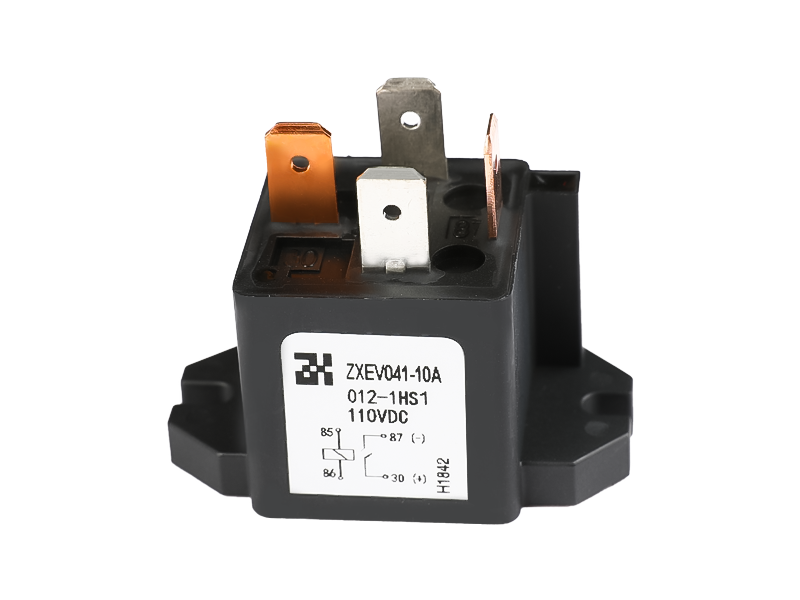

110VDC ZXEV041-10A Pre-rush relay Medium Pressure DC Contactor

110VDC ZXEV041-10A Pre-rush relay Medium Pressure DC Contactor

  • Characteristics 10A continuous current capability Automotive Design Standard pin size for foot position Dust cover type resists harsh environment Typical application Headlight Start relay Fog lights Radiator fans Horn Power window Blower motor Low-speed car pre-charging
Contact us
  • Coil Data
    Model Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    D 012 12 72 2 7.2 18.0 1.2
    024 24 288 14.4 35 2.4
    Contact Data
    Material AgSnO2
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A
    Max.Continuous Current 10A
    Min.Load 1A/5VDC
    Sevice Life Mechanical
    Electrical 1×10<sup style="font-family: inherit;">5ops. 10A 110VDC
    Performance Parameters
    Operate/Release Time 7ms. typical/2ms. typical
    Dielectric Withstand Voltage Coil to contact
    Across open contact 500Vrms, 1 min
    Operate time 20g, 11ms.
    Vibration 10-40Hz:Double amplitude DA1.27mm,40-70Hz:5g 70-100Hz:Double amplitude DA0.5mm, 100-500Hz:5g
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 125℃
    Weight Approx 34.5g;
    Drop Resistance Drop Resistance 1M height drop on concrete

  • 1. The above parameters are subject to room temperature of 23 degrees unless otherwise specified.
    2. The maximum on-current refers to the surge current on the lamp.
    3. When the ambient temperature is 85 degrees, the maximum allowable voltage should be reduced to 72% of the original value.
    4. If applied to 24V system, please contact the factory for contact load capacity.
