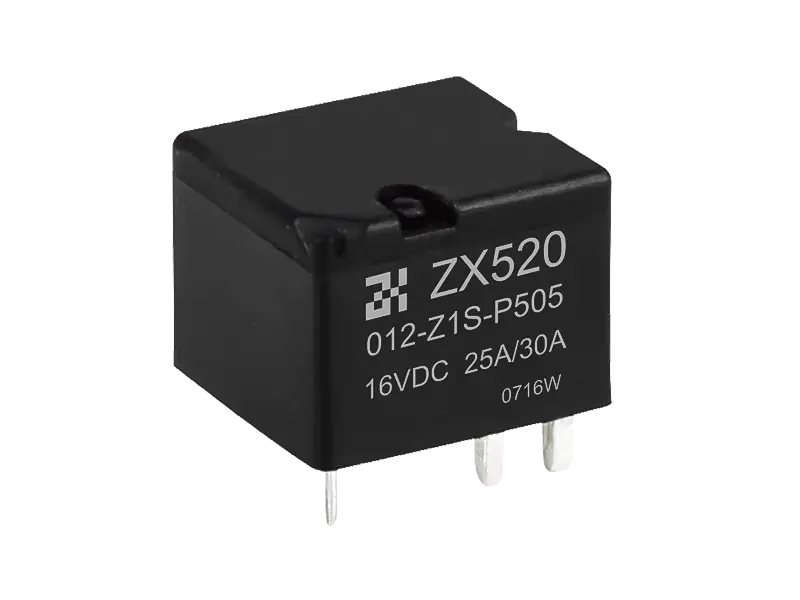

30A Maximum Continuous Current ZX520 Automotive Relays

30A Maximum Continuous Current ZX520 Automotive Relays

  • Main Features Ultraminiaturized design,extremely light weight 30A maximum continuous current Typical automotive Applications Motor control Interval wiper control Lamp control Rear window and seat heating
Contact us

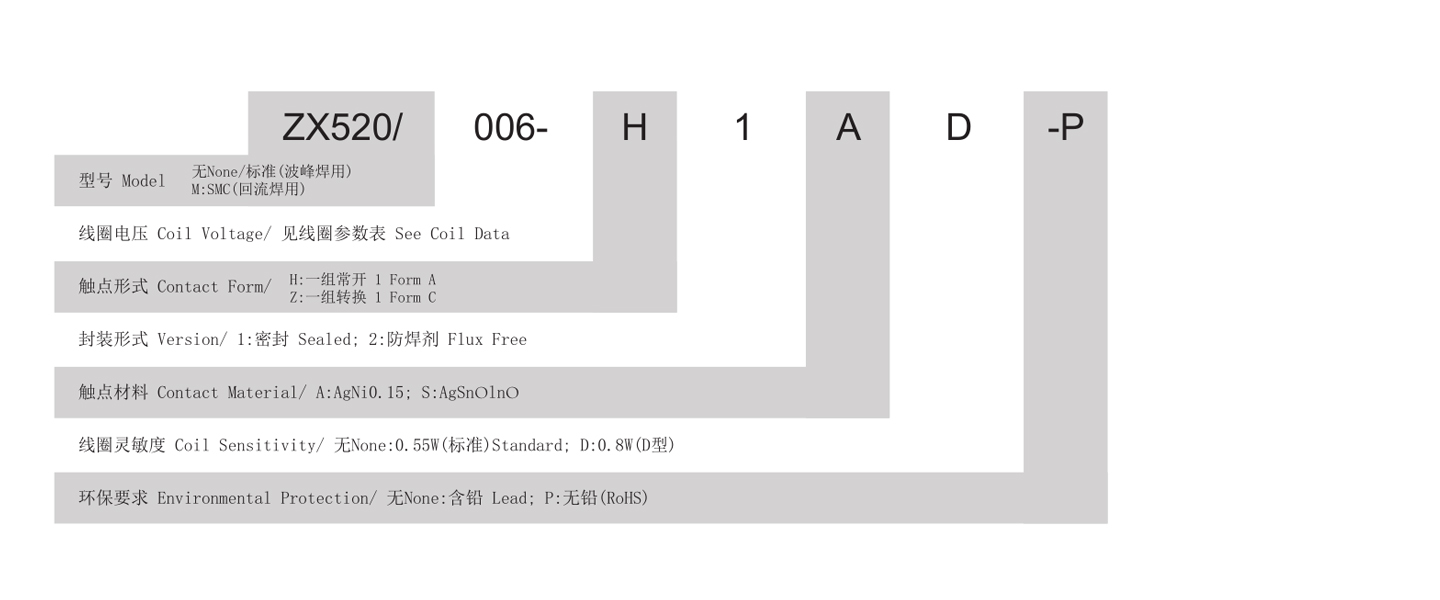

  • Coil Data
    Model Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    Standard 006 6 64 0.55 3.5 13.2 0.6
    010 10 181 5.7 22 1.0
    012 12 254 6.9 26 1.2
    D 006 6 45 0.8 3.5 10 0.6
    010 10 125 5.7 16 1.0
    012 12 181 6.9 22 1.2
    Contact Data
    Material AgNi0.15; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A
    NO NC
    Max.Switching Current Make
    Break 30A
    Max.Continuous Current 30A
    Max.Switching Voltage 16VDC
    Min.Load AgNi0.15：0.1A/12VDC; AgSnOlnO：0.5A/12VDC
    Sevice Life Mechanical
    Electrical 1×105 ops.
    Characteristics
    Operate/Release Time 3ms. typical/1.5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 30g, 6ms.
    Vibration Resistance 6g, 10-55Hz
    Ambient Temperature Operating：-40℃ to 105℃ Storage：-40℃ to 155℃
    Weight Approx 4g
    Drop Resistance Drop Resistance 1M height drop on concrete

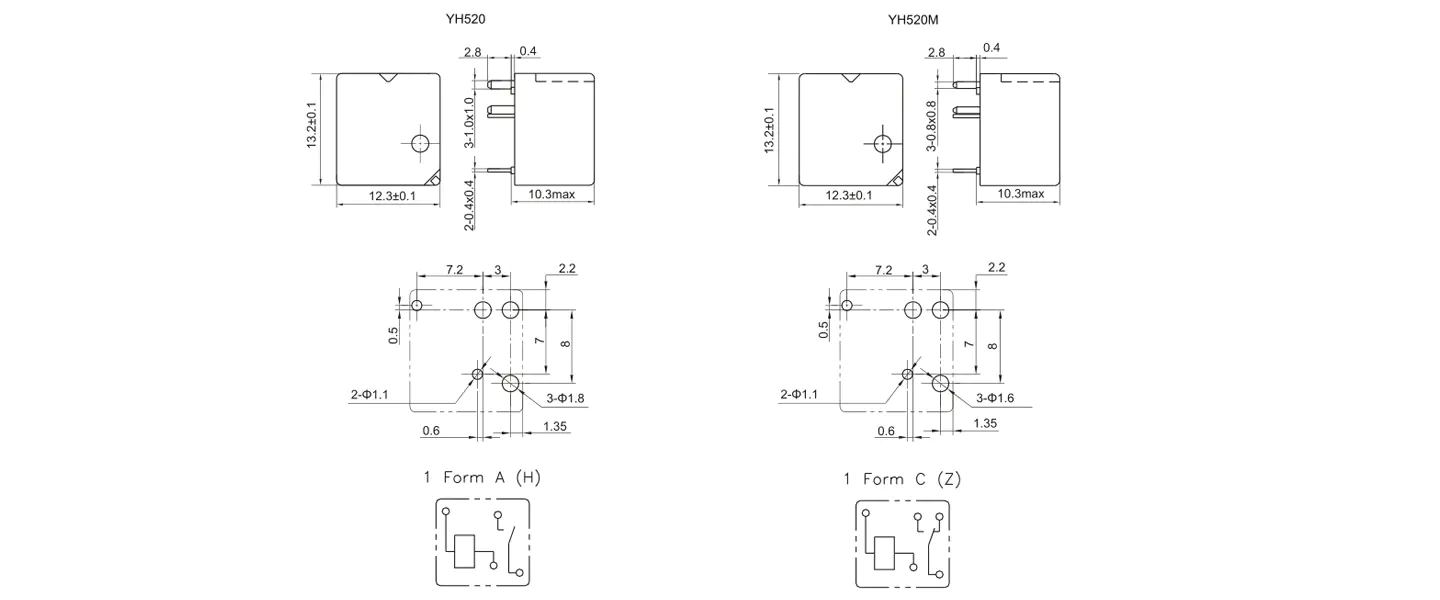

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4.Electrical life obtained at resistive load at 20A,13.5VDC on NO contacts with operating frequency of 6 ops/min.

    5.To exert optimum electrical life,please remove the knock-off nib of sealde version after cleaning process.

    4.Equivalence:Tyco Microk
