  • 20A 16VDC Sell Online ZX231A Automotive Relays
20A 16VDC Sell Online ZX231A Automotive Relays

20A 16VDC Sell Online ZX231A Automotive Relays

  • Main Features Subminiature tyep,compact design Heavy duty,contact capacity up to 20A 16VDC Low cost PCB relay Typical automotive Applications Central door lock ABS system Belt tension adjustment Power window Seat positioning
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    006 6 45 0.8 3.2 0.6
    012 12 180 6.3 1.2
    024 24 720 12.6 2.4
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Rated load Resisive 20A 16VDC
    Sevice Life Mechanical
    Electrical 1×10 5 ops.
    Characteristics
    Operate/Release Time 10ms. max/5ms. max
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength Between coil and contacts;1000Vrms,1mim Between open contacts;750Vrms,1mim
    Shock Resistance Functional:10g,11ms; Destructive:100g
    Vibration Resistance DA1.5mm, 20-220Hz
    Ambient Temperature -40℃ to 85℃
    Weight Approx 10g
    Referencd Curve

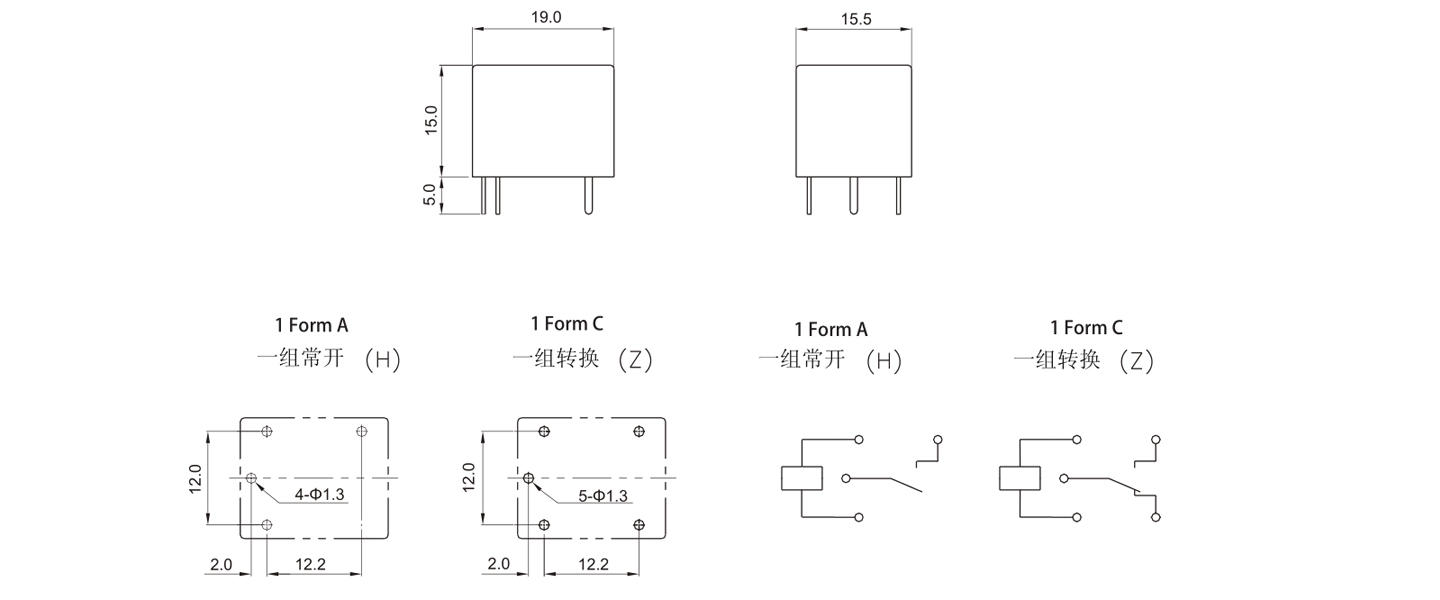

  • Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    All parameters,unless otherwise specified,are measured at ambient temperature 23℃.
