ZX231 General Purpose Low cost PCB Automotive Relay

ZX231 General Purpose Low cost PCB Automotive Relay

  • Main Features Subminiature type,compact design Heavy duty,contact capacity up to 12A,120VAC/28VDC 7A 240VAC Low cost PCB relay Typical automotive Applications Office machine Home appliances Audio system
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance（Ω）±10% Must Operate Voltage max. Must Release Voltage min.
    Standard(0.45W) Sensitive(0.36W)
    003 3 20 25 2.25
    006 6 80 100 4.50
    009 9 180 225 6.75
    012 12 320 400 9.00
    024 24 1280* 1600* 18.00
    048 48 4500* 6400* 36.00
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A/ 1Form B/ 1 Form C
    Rated Load 12A,120VAC/28VDC 7A,240VAC
    Max.Continuous Current 12A
    Sevice Life Mechanical
    Electrical 1×10 5 ops.
    UL/CSA Ratings
    Load Type ZX231
    Resistive 12A,120VAC(UL/CSA) 12A,28VDC(UL/CSA/TUV) 6A,250VAC(TUV)
    Television 5A,120VAC(No)(UL/CSA)
    Characteristics
    Operate/Release Time 10ms. max/5ms. max
    Insulation Resistance 1000MΩ, at 500VDC, 50%RH
    Dielectric Strength Between coil and contacts:1500Vrms, 1mim Between open contacts:1000Vrms, 1mim
    Shock Resistance Functional:10g,11ms; Destructive:100g
    Vibration Resistance DA1.5mm, 20-220Hz
    Ambient Temperature -40℃ to 70℃
    Weight Approx 10g

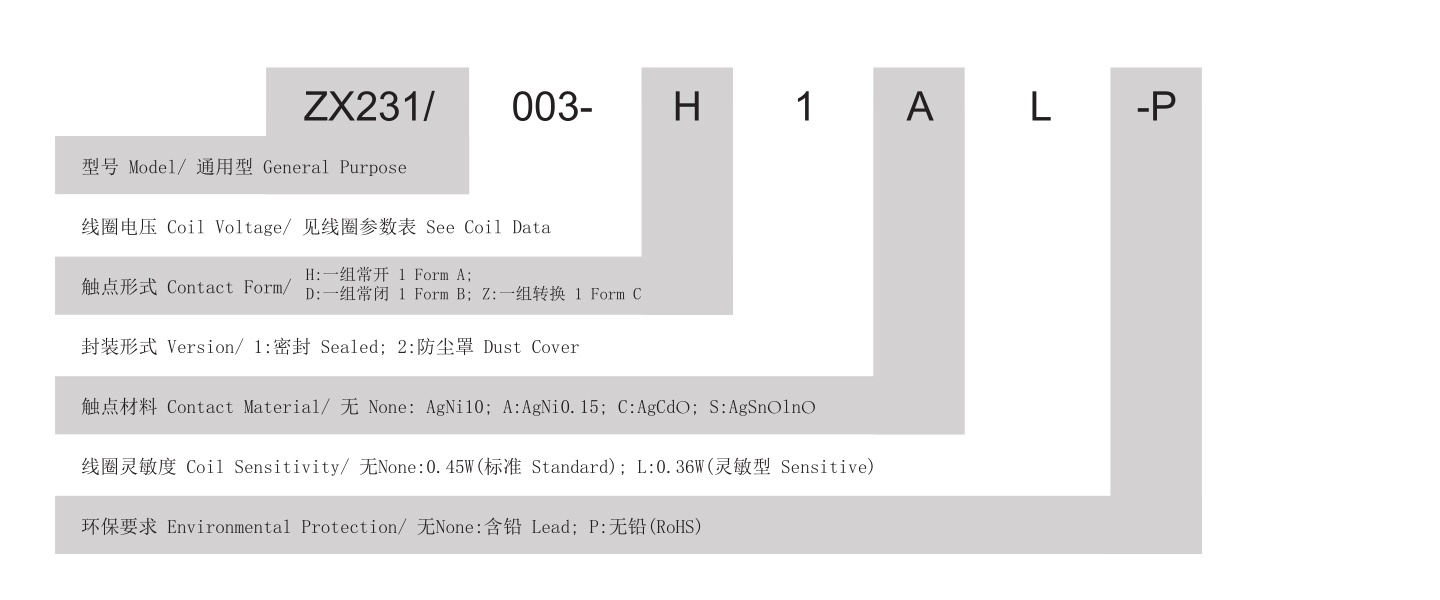

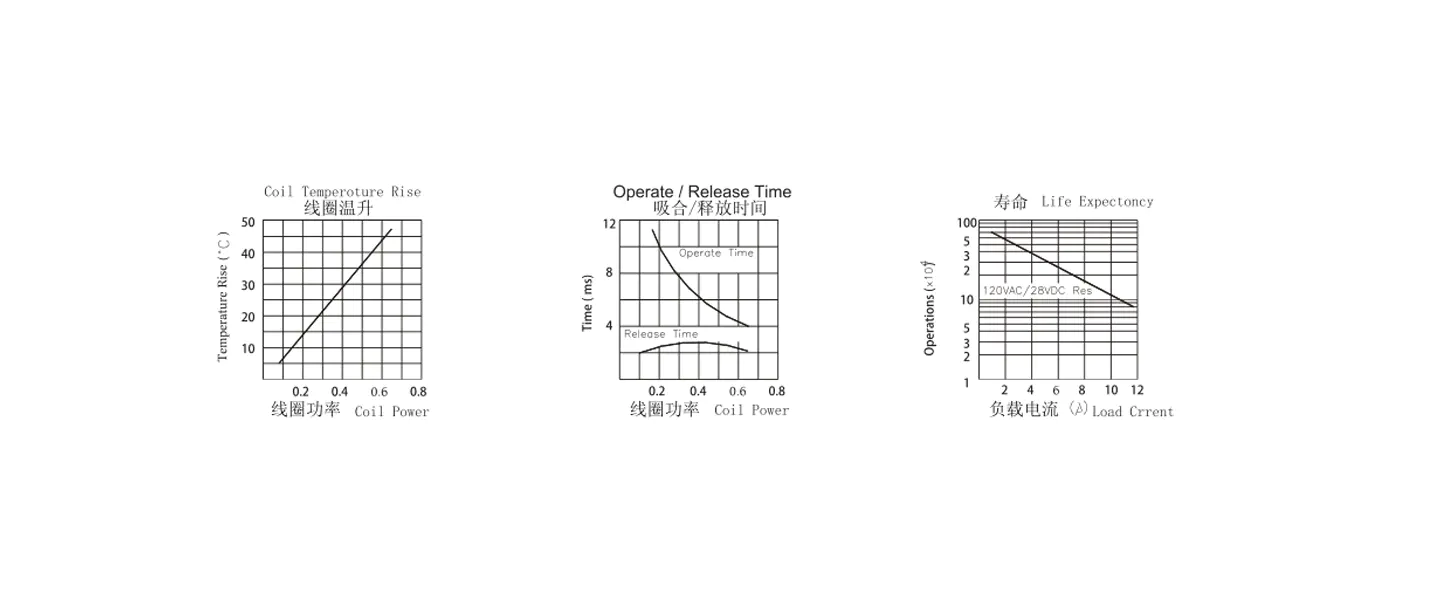

  • Reference Curve

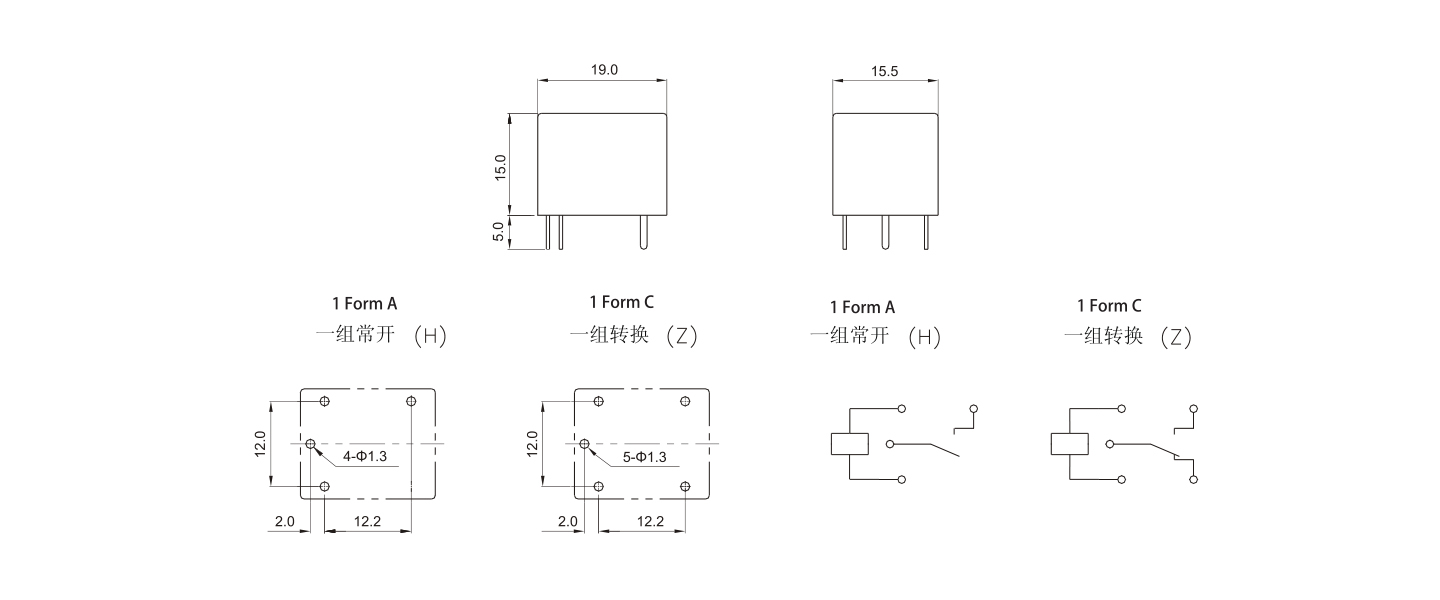

    Outline drawing, bottom view cut-out dimension drawing, wiring diagram

  • Notes：

    All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    Equivalence:OEG PCE
