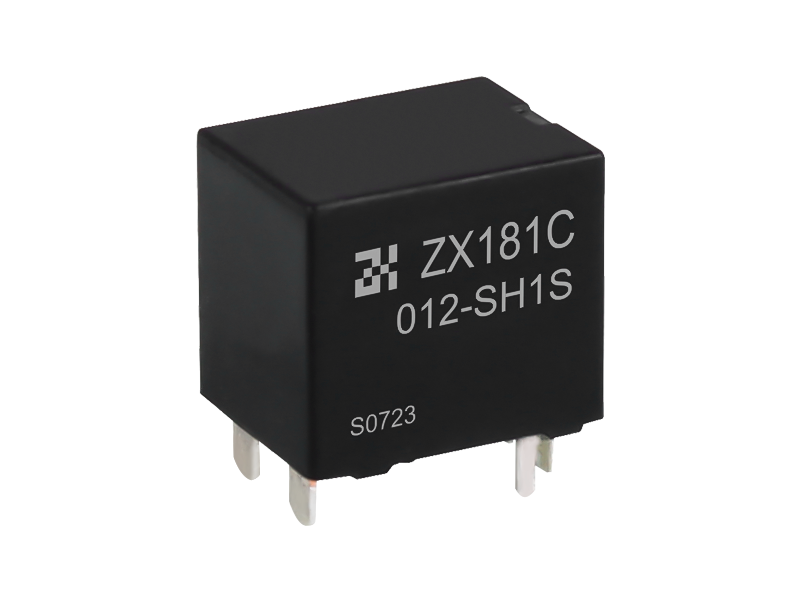

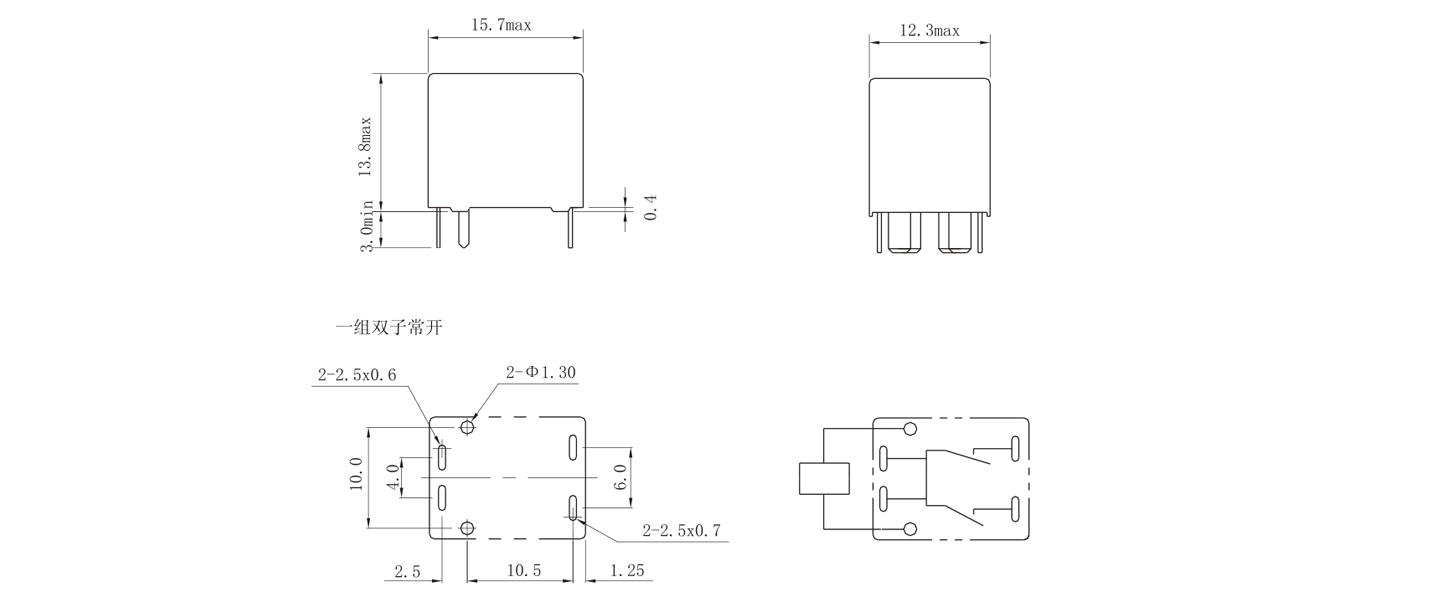

Long Life 14VDC ZX181C Automotive Relays

Long Life 14VDC ZX181C Automotive Relays

  • Main Features Miniaturized structure,light weight Improved contact volume 1 Form U contact form for independent 2 channel control Typical automotive Applications EPS DC control Hazard lamp ABS system Flasher
Contact us

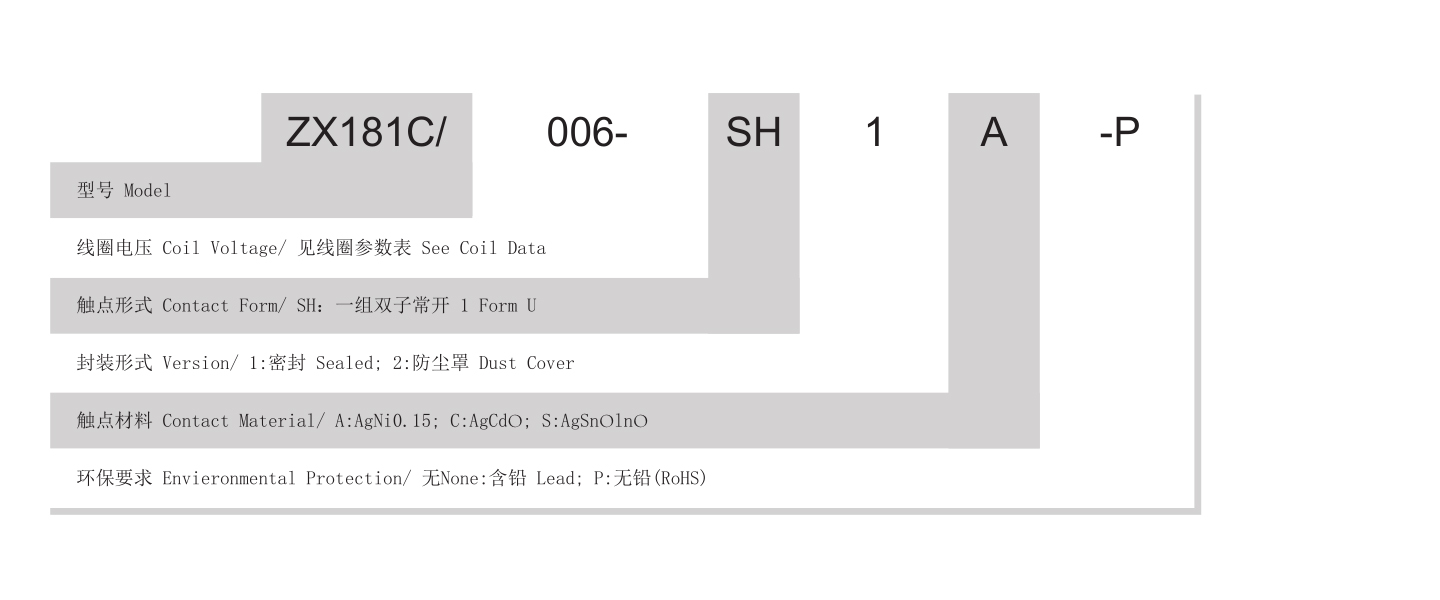

  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    006 6 42 0.85 3.5 0.5
    009 9 94 5.2 0.7
    010 10 117 6.3 0.8
    012 12 167 7.3 1.0
    Contact Data
    Material AgSnOlnO; AgNi10; AgNi0.15; AgCdO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form U
    Max.Switching Current Make
    Break 2×12.5A
    Max.Continuous Current 2×30A, 2min
    Max.Switching Voltage 16VDC
    Min.Load 0.5A/12VDC
    Sevice Life Mechanical
    Electrical 1×10 5 ops.
    Characteristics
    Operate/Release Time 10ms. typical/5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 11ms.
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 100℃
    Weight Approx 6g
    Drop Resistance Drop Resistance 1M height drop on concrete

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.Electrical life obtained at lamp load at 2x6A,14VDC with 1ms ON,14ms OFF.

    4.Electriacl life is strongly dependent of switiching fieqency.ON/OFF ratio, envionmental conditions and level.

    5.Equivalence:Fujitsu FBR53ND10-Y-HW
