Home / Products / Automotive Relays / Miniaturized Structure 2 Channel Control ZX181B Automotive Relays

  • Miniaturized Structure 2 Channel Control ZX181B Automotive Relays
Miniaturized Structure 2 Channel Control ZX181B Automotive Relays

Miniaturized Structure 2 Channel Control ZX181B Automotive Relays

  • Main Features Miniaturized structure,light weight Improved contact capacity 1 Form U contact form for independent 2 channel control Typical automotive Applications EPS DC control ABS system Hazard lamp Flasher
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min.
    006 6 36 1 3.5 0.5
    009 9 81 5.2 0.7
    010 10 100 5.8 0.8
    012 12 144 6.9 1.0
    024 24 576 14.00 1.9
    Contact Data
    Material AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form U
    Max.Switching Current Make
    Break 2×6A
    Max.Continuous Current 2×15A, 2min
    Max.Switching Voltage 16VDC
    Min.Load 0.5A/12VDC
    Sevice Life Mechanical
    Electrical 1×10 5 ops.
    Characteristics
    Operate/Release Time 10ms. typical/5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 11ms.
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 100℃
    Weight Approx 6g
    Drop Resistance Drop Resistance 1M height drop on concrete

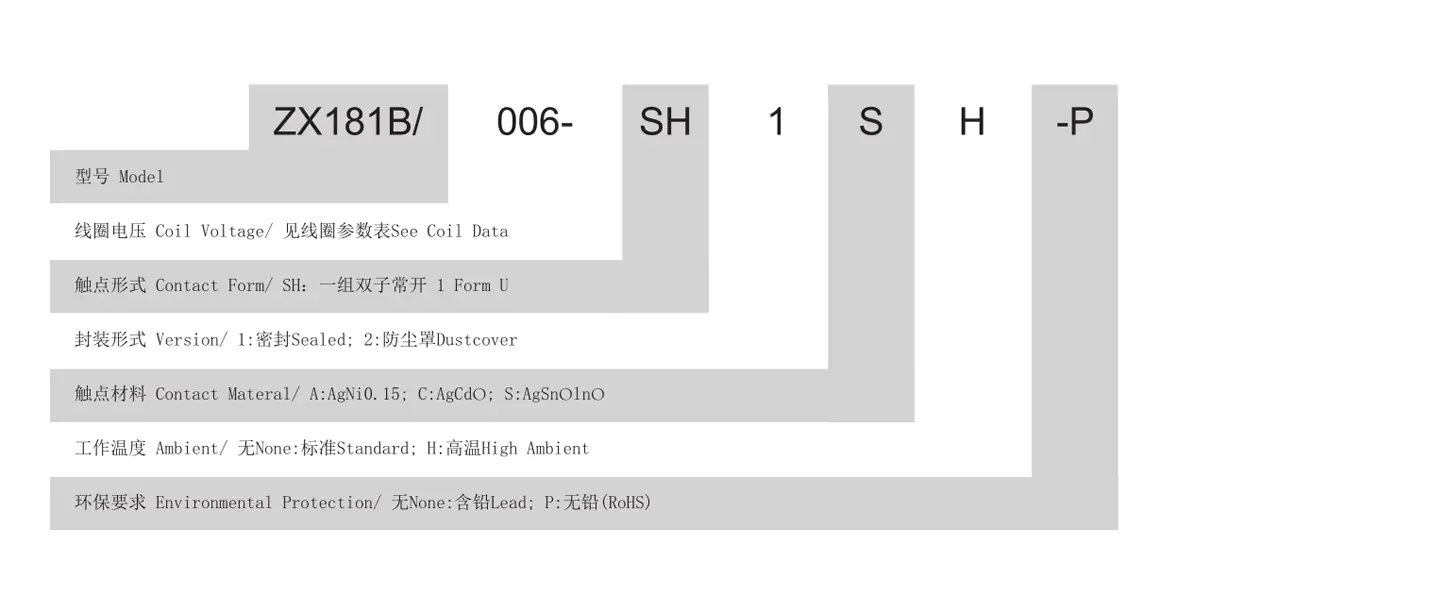

  • Ordering Code

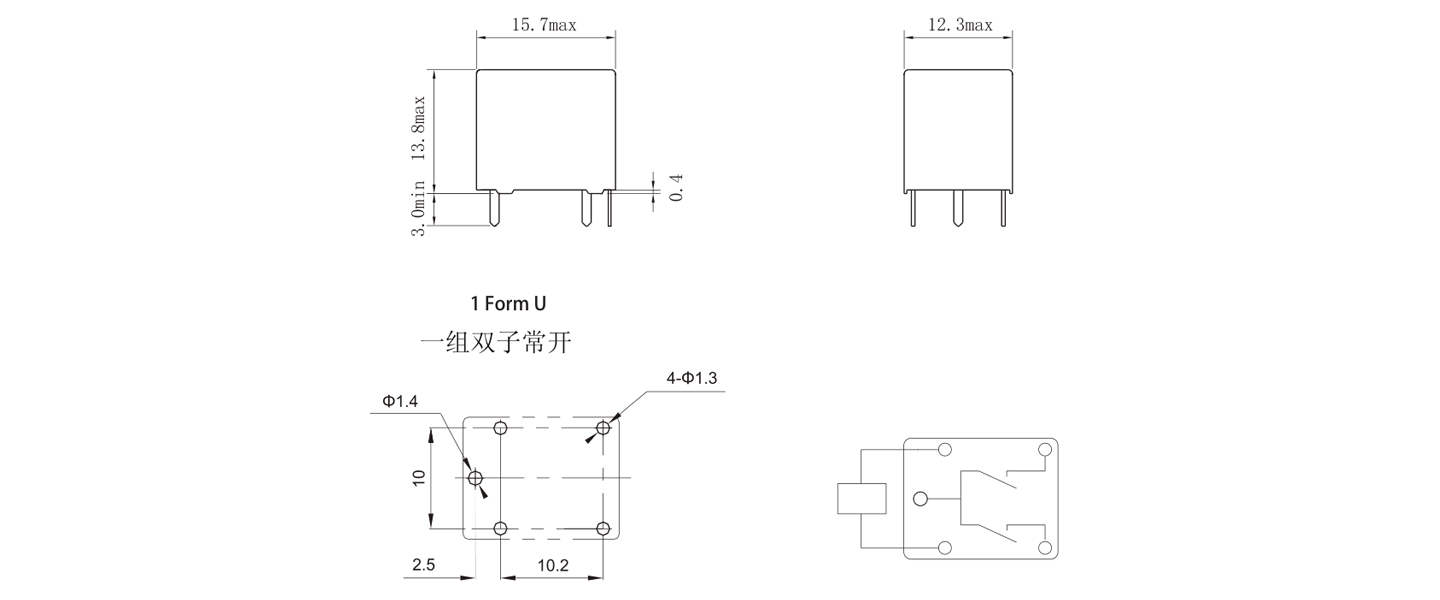

  • Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1. All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2. Maximun make current refers to inrush current of lamp load.

    3. Electrical life obtained at lamp load at resistive load 2x6A,14VDC with operating frequence of 6 ops/min.

    4. Electrical life is strongly dependent of switiching fieqency.ON/OFF ratio, envionmental conditions and level.
