Home / Products / Automotive Relays / Hot Sale Light Weight ZX181 Automotive Relays

  • Hot Sale Light Weight ZX181 Automotive Relays
  • Hot Sale Light Weight ZX181 Automotive Relays

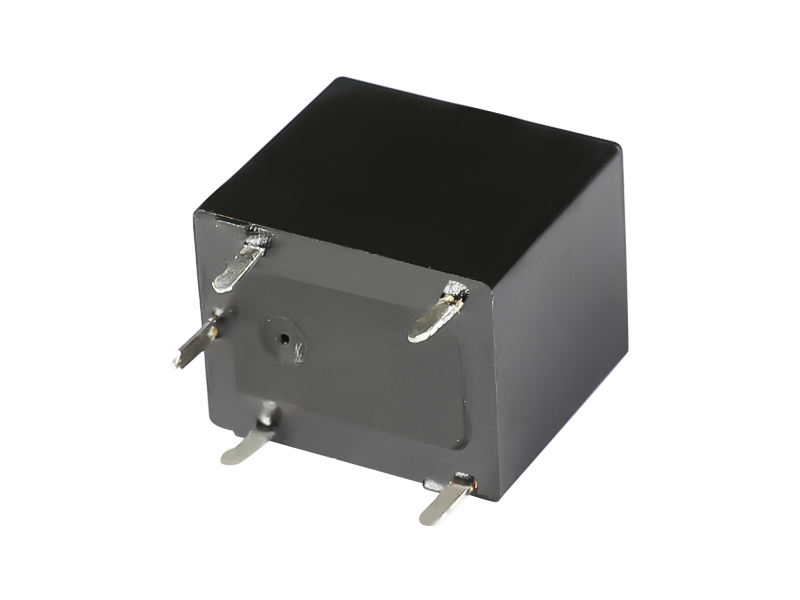

Hot Sale Light Weight ZX181 Automotive Relays

Hot Sale Light Weight ZX181 Automotive Relays

  • Main Features Miniaturized structure,light weight Improved contact capacity Big gap type available for heavy motor load switching Typical automotive Applications Power antenna Anti-theft alarm system Power window Automatic mirror adjustment Interval wiper control Automatic head rest adjustment Sunroof control Flasher
Contact us

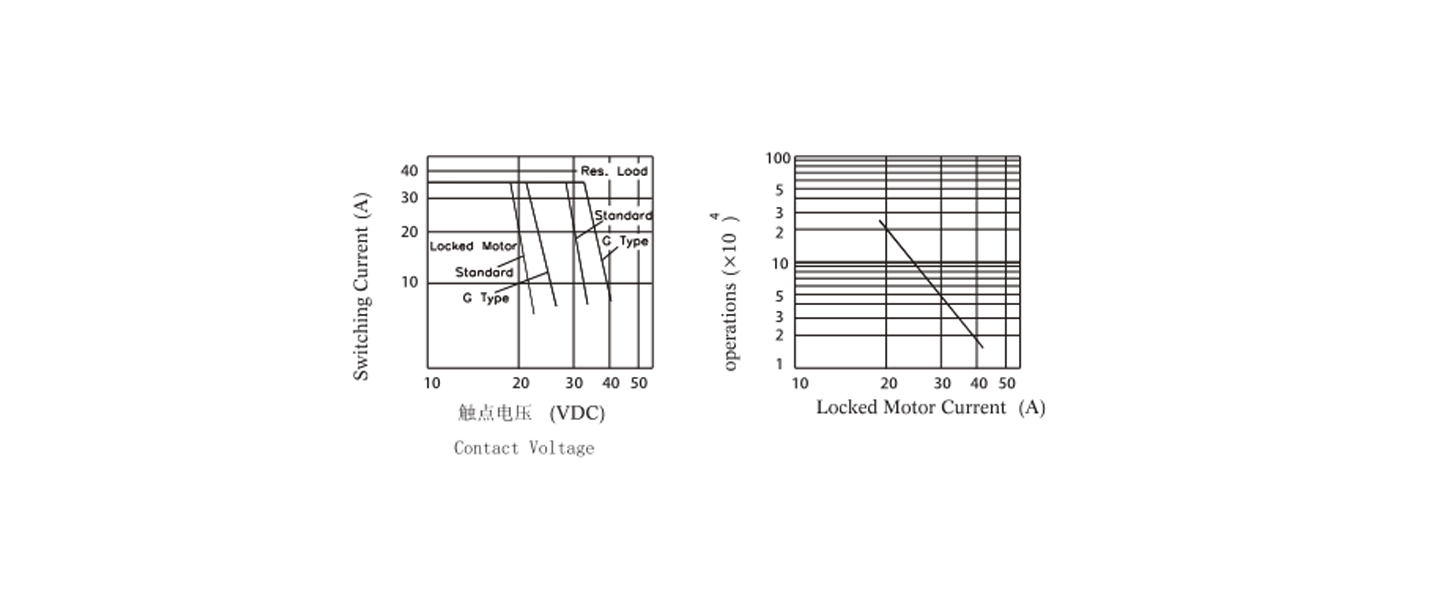

  • Referencd Curve

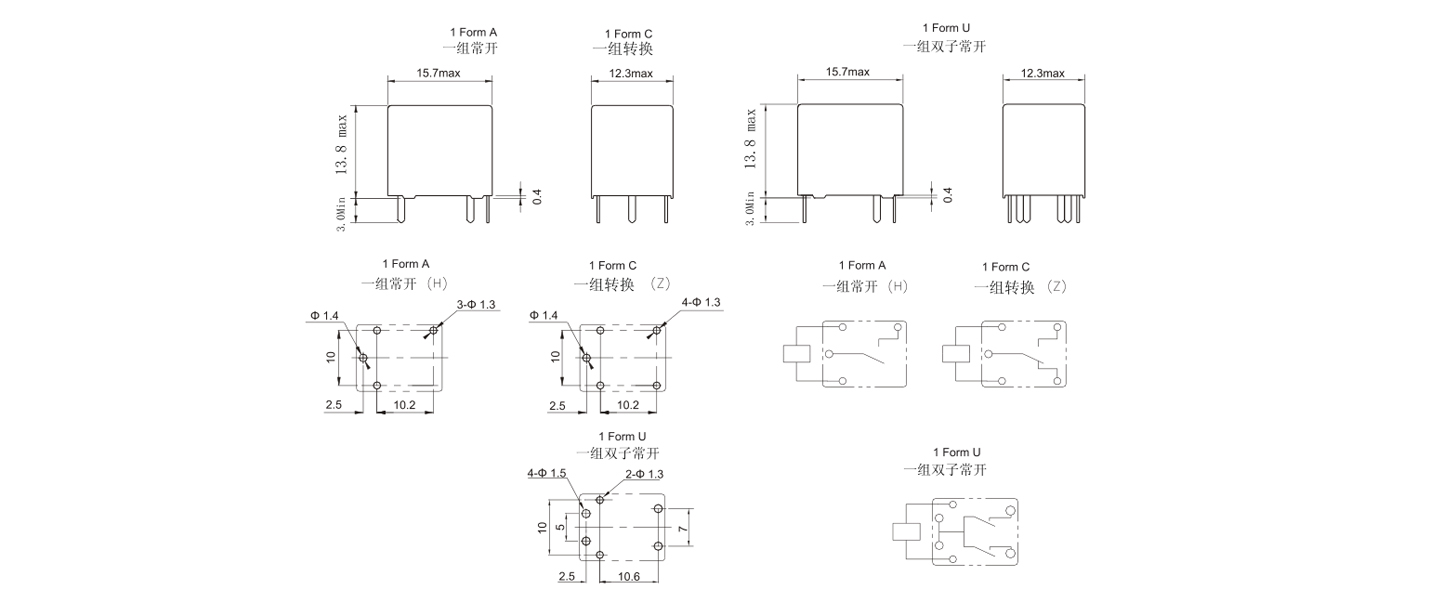

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.Electrical life of 1 Form A,1 Form C obtained at motor load of locked rotor at 20A,14VDC or resistive load of 10A,14VDC;1 Form U at 2x6A,14VDC resistive with operating frequency of 6 ops/min.

    4.Electriacl life is strongly dependent of switiching fieqency.ON/OFF ratio, envionmental conditions and level.

    5.Equivalence:Fujitsu FBR51-52
