  • Hight Current Industrial ZX119 30-45A Automotive Relays

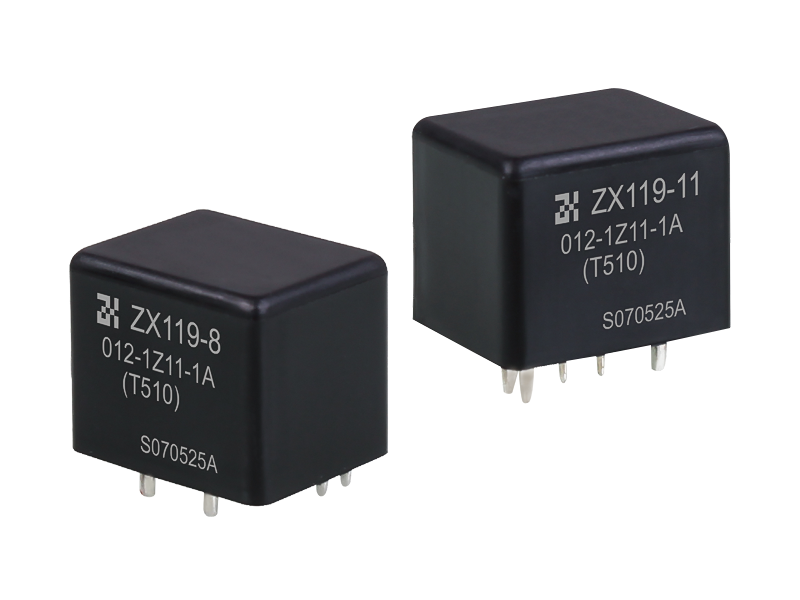

Hight Current Industrial ZX119 30-45A Automotive Relays

Hight Current Industrial ZX119 30-45A Automotive Relays

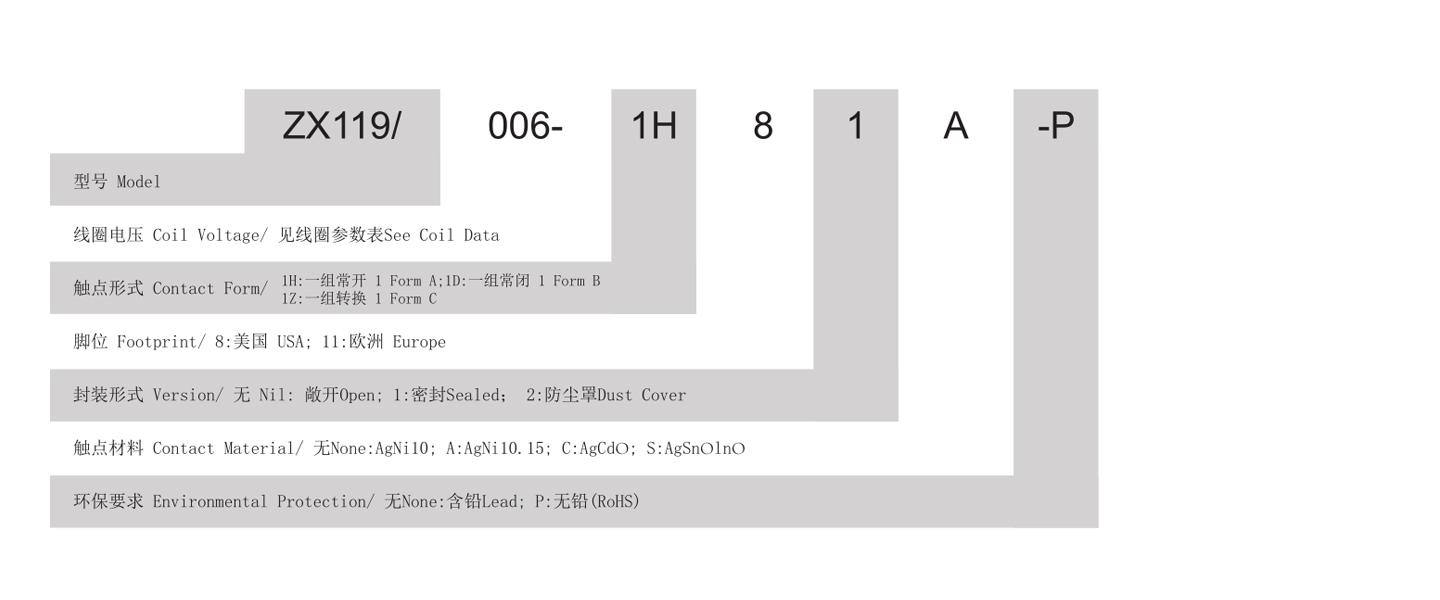

  • Main Features 30A to 45A continuous current capacity Availble with 2 footprints Available and open,dust cover and sealed version Automotive-oriented design Typical automotive Applications Flasher Inertia valve control Air conditioning Interval wiper control Automatic mirror adjustment Central door lock Fuel pump control Sunroof control ABS system Ventilation motor Hazard warning light Belt tension adjustment Anti-theft alarm system Heater control Power window Safety belt warning system Rear window heating Seat positioning
Contact us
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Allowable Voltage Must Release Voltage min.
    006 6 19 1.6 3.3 8.9 0.6
    012 12 20 6.8 19.3 1.2
    024 24 362 13.9 38.7 2.4
    Contact Data
    Material AgNi10; AgNi0.15; AgCdO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form A
    NO NC
    Max.Switching Current 100A
    Max.Continuous Current Make
    Break 45A
    Max.Switching Voltage See Reference Curve, Relate to Current
    Min Load 0.1A/12VDC (AgNi0.15); 0.5A/12VDC (AgSnOInO)
    Sevice Life Mechanical
    Electrical 2×10 5 ops. See Note 4
    Characteristics
    Operate/Release Time 5ms. typical/1.5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 20g, 11ms
    Vibration Resistance DA1.5mm, 20-200Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 155℃
    Weight Open: Approx 18g; Covered: Approx 23g
    Drop Resistance Drop Resistance 1M height drop on concrete

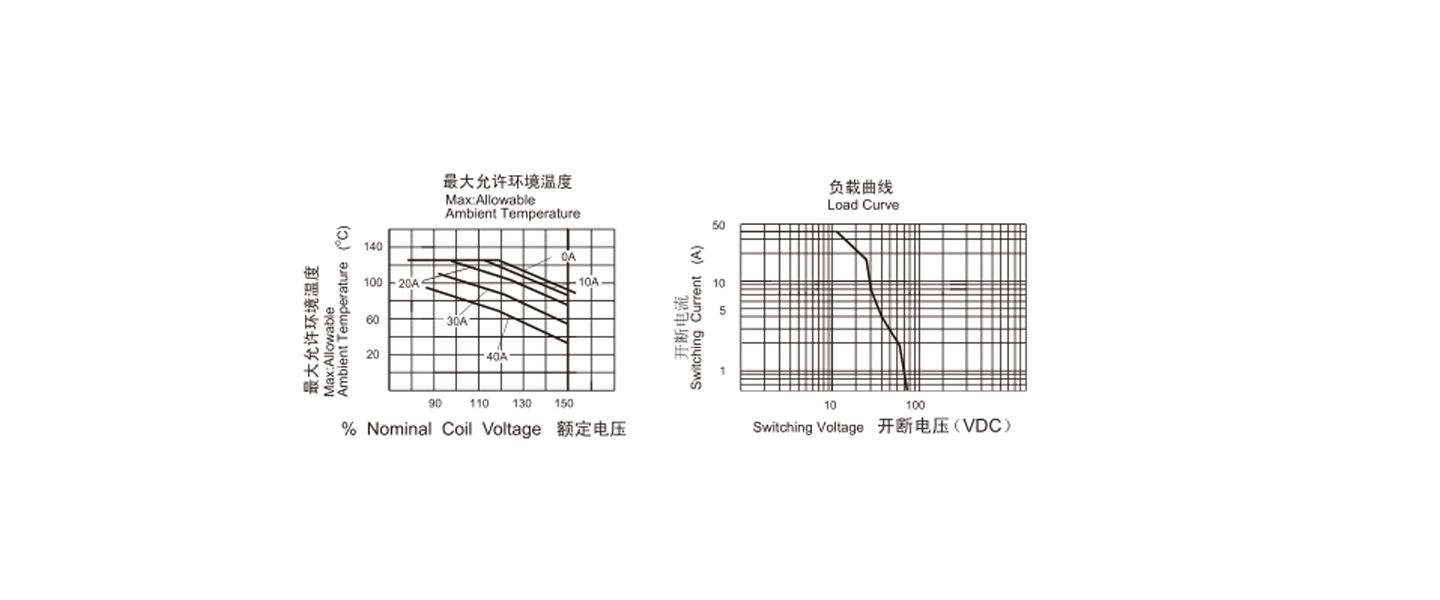

    Referencd Curve

  • Referencd Curve

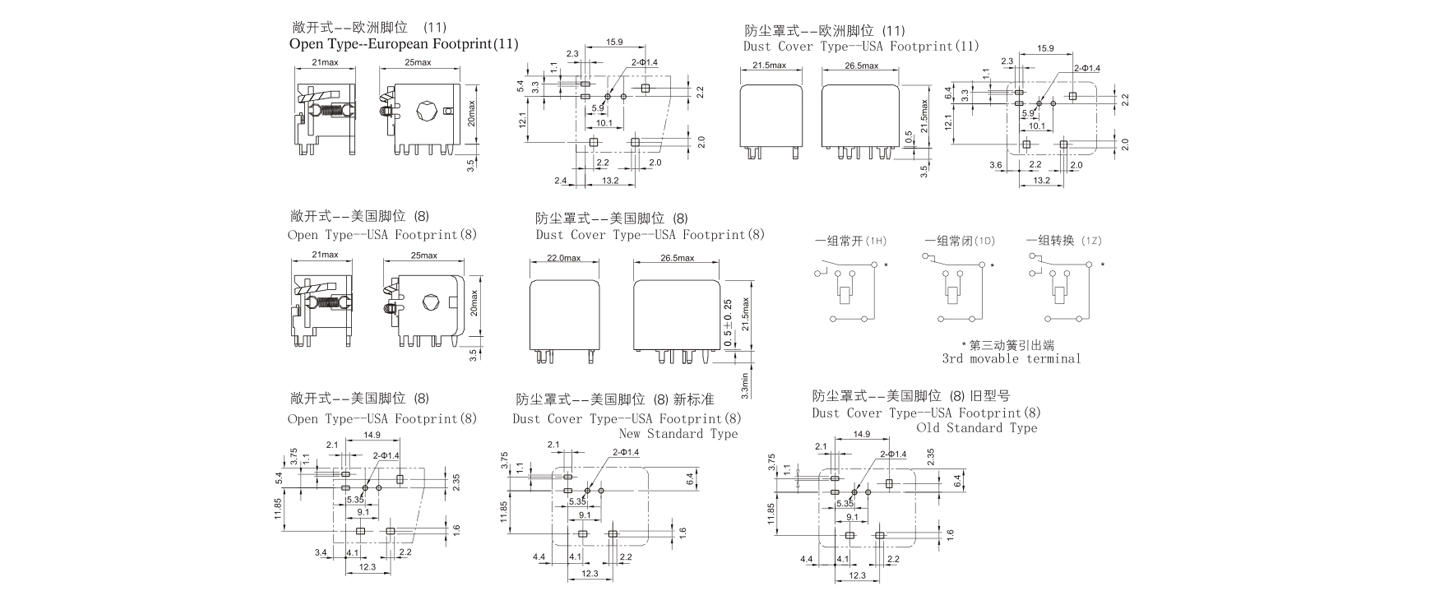

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.At ambient temperature of 85℃,Maximum allowable voltage should be reduced to 72%.

    4.Electriacl life obtained at resistive or inductive load at 40A,13.5VDC with suitable are-suppression circuit attached with operating frequency of 1 ops/sec.

    5.Equivalence:Tyco Power K, P&B VKP
